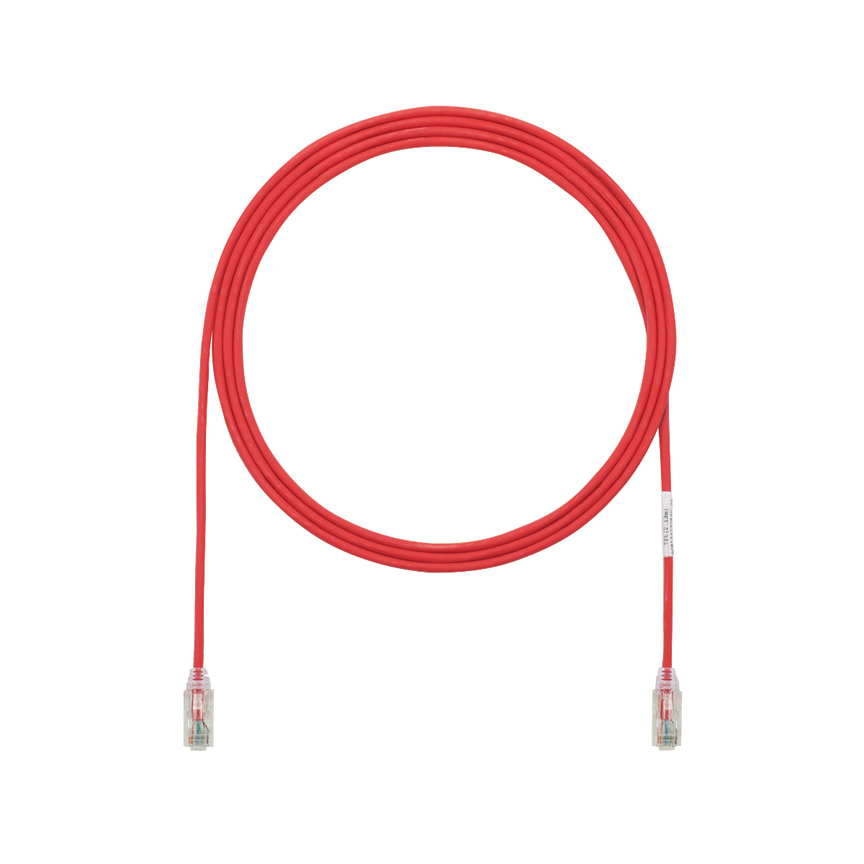

Product image for PAN UTP28SP8INRD-48 CU Patch Crd,Ca
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PAN UTP28SP8INRD-48 CU Patch Crd,Ca

Manufacturer: Panduit | Catalog # UTP28SP8INRD-48 | Codale Part # 4481046
$38.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The TX6-28™ Cat 6 UTP Patch Cord is a 8-Inches, 0.150-inch (3.8mm) diameter, Red cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video(4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
167 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
167 degrees F
Type
Category 6, Small Diameter
Wire Size
28 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983722082
Color
Red
Jacket Material
LSZH Material
Product UPC
07498372208
Weight
1.3900 lb

Dimensions

Cable Length
8 in
Length
8 Inch
Outside Diameter
3.8 mm
Overall Length
0.66 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant
Prop 65
  • No
