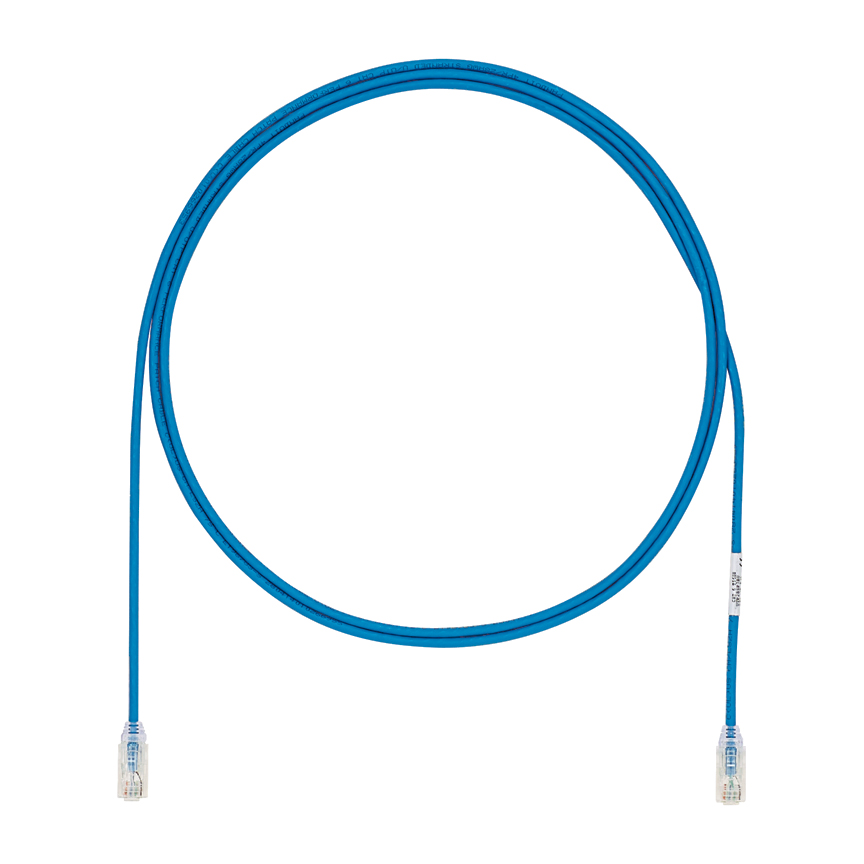

Product image for PAN UTP28X8INOR Cat6A,28AWG,UTP,PC,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PAN UTP28X8INOR Cat6A,28AWG,UTP,PC,

Manufacturer: Panduit | Catalog # UTP28X8INOR | Codale Part # 4481084
$51.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The TX6A-28™ Cat 6A UTP Patch Cord is a 8-Inches, 0.185-inch (4.7mm) diameter, Orange cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing
Boot Color
Clear
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Type
Solid
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
167 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug with Bulkhead and Dust Cap
Standard
CSA,NOM,UL
Temperature Rating
167 degrees F
Type
Category 6A
Wire Size
28 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983994342
Color
Orange
Jacket Material
LSZH Material
Product UPC
07498399434
Weight
0.0530 lb

Dimensions

Cable Length
8 in
Length
8 Inch
Outside Diameter
4.7 mm
Overall Length
0.66 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7,Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 Complianttype 4 (24 cables in a bundle) PoE applications
