Hubbell GFRST82SNAPGY15A COMM HG SELF TEST SNAP GFR GRAY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFRST82SNAPGY | Codale Part # 4482558
$99.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

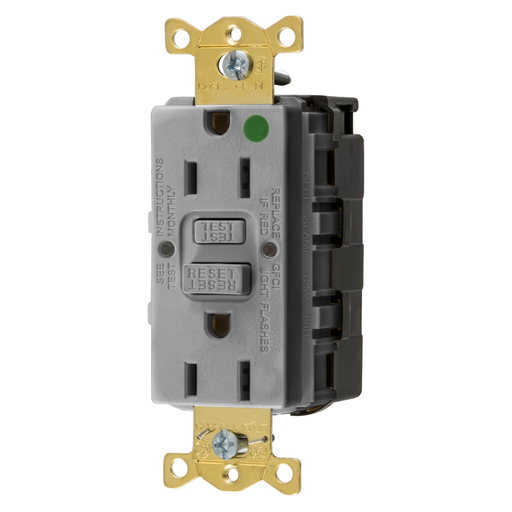

Straight Blade Devices, Receptacle, GFCI, SnapConnect, Commercial Hospital Grade, Self Test, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Gray.

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Commercial Standard Hospital Applications
Conductor Size
12 AWG
Connection Type
Back and Side
Contact Material
Brass
Current
15 Amp
Grade
For Commercial, Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
NEC®
Style
Standard
Temperature Rating
-35 degrees C to 66 degrees C
Type
Decorator, Self-Test
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
12 AWG
Wire Type
Grounding

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Autoguard®, Style Line®, SnapConnect®

General Product Info

12-Digit UPC
783585486246
Color
Gray
Environmental Conditions
95% Maximum Humidity
Product UPC
78358548624

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • SNAPConnect, Style Line, AUTOGUARD, Self test GFCI receptacle
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction
