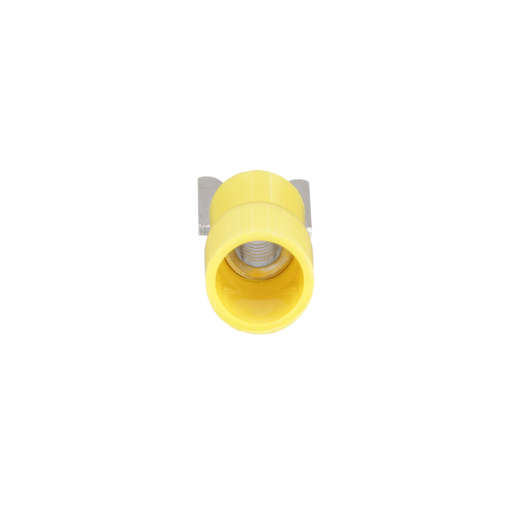

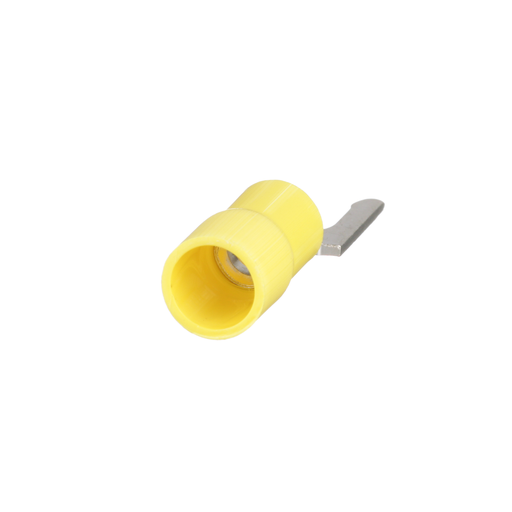

Panduit PV10-10LFX-L Expanded Vinyl Insulated Locking Fork Terminal

Manufacturer: Panduit | Catalog # PV10-10LFX-L | Codale Part # 4483244
$259.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Locking Fork Terminal, vinyl insulated, 12- 10 AWG, #10 stud size, expanded insulation for large wire O.D., standard package.

Technical Information

Barrel Length
0.43 in
Barrel Type
Brazed Seam With Insulation Support
Color Coding
Yellow
Conductor Size
10 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA,E2186,UL
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.34 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983808366
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product Type
Terminals
Product UPC
07498380836
UNSPSC
39121409

Dimensions

Length
1.12 Inch
Outer Diameter
0.25 in
Overall Length
1.12 in
Width
8.6 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
