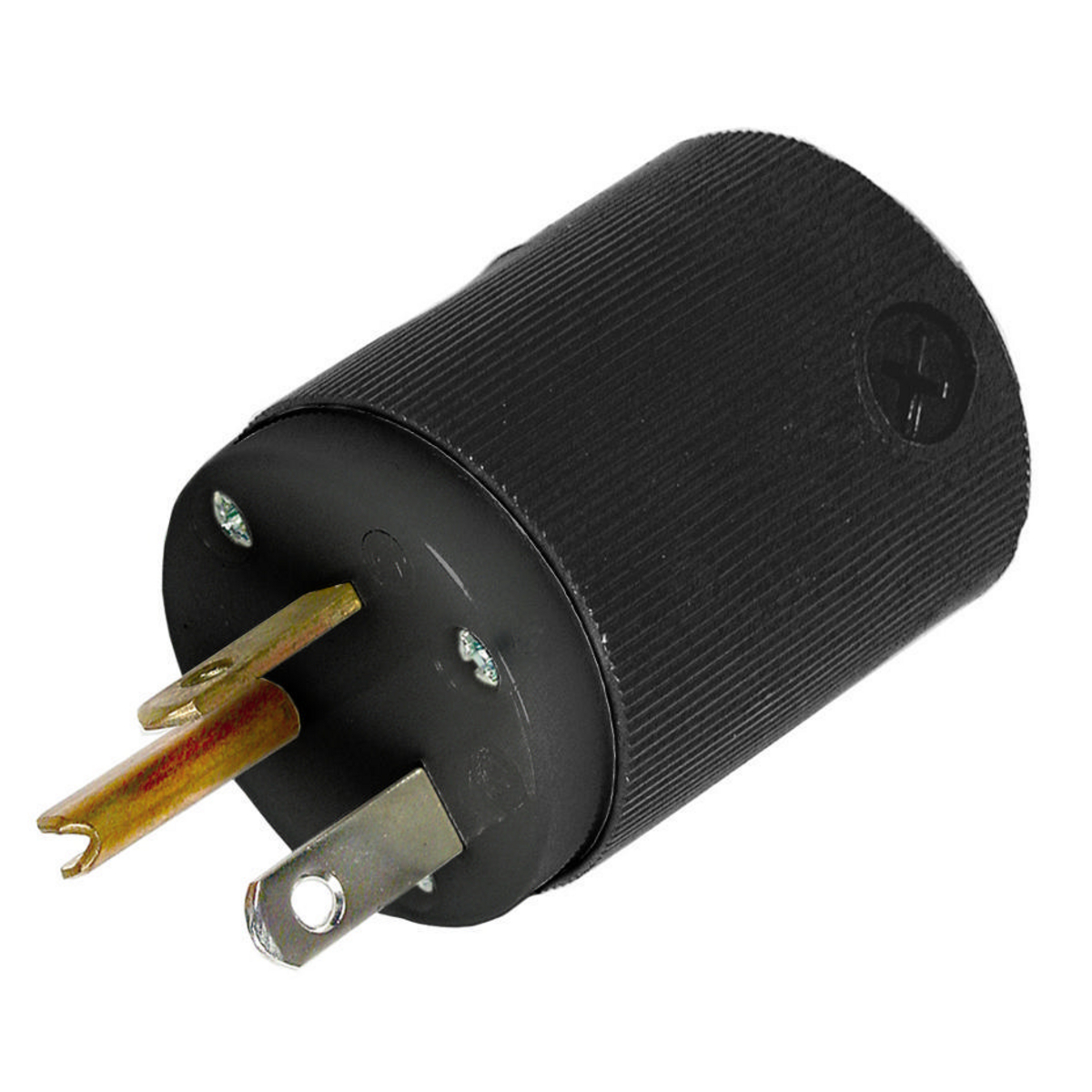

Hubbell HBL5366EBK Plug, 20A 125V, 5-15P, 12/3 SO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5366EBK | Codale Part # 4483667
$81.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Black, Single Pack, Rated for 12/3 SO.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial Grade
Conductor Size
18-10 AWG
Current
20 Amp
Flamability Class
UL 94 HB Or Better
Horsepower
1 hp
Material
Polycarbonate
NEMA
5-20P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
#8-32 Brass
Standard
C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Type
Plugs
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585541389
Color
Black
Product Series
Insulgrip
Product UPC
78358554138
Weight
0.15 lb

Dimensions

Height
1.6 Inch
Length
2.91 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
