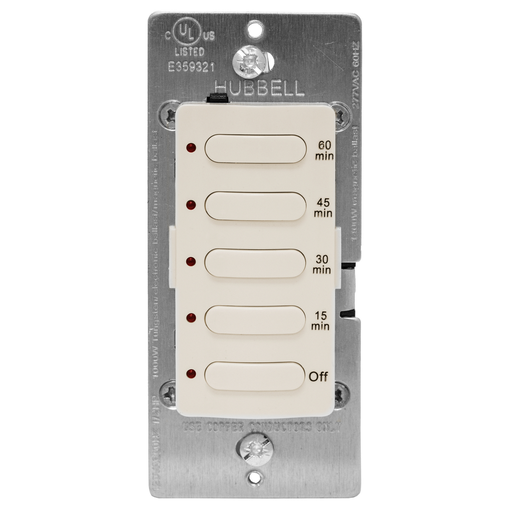

HWDK DT5060LA TIMER 60MIN, 8.3A 120

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DT5060LA | Codale Part # 4484978
$78.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Timer Switches, Single Pole, 8.3A120/277V AC, 60 Minute Delay Time Out, Light Almond

Technical Information

Action
Push Button
Amperage
8.3 Amp
Applications
Wall Mounted
Conductor Size
14 AWG
Contact Rating
Inductive and Resistive Loads
Material
Polycarbonate
Number of Poles
1 Pole
Operating Temperature
11 degrees C
Size
3.81 in x 1.75 in x 2.27 in
Tc Connection
Terminal Screws
Temperature Rating
0 degrees C to 40 degrees C
Type
Standard
Voltage
120/277 Volt
Wattage
1000 Watt
Wire Length
6 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Switches and Lighting Controls

General Product Info

12-Digit UPC
783585256429
Color
Light Almond
Environmental Conditions
Indoor Use Only
Product Series
Fixed Countdown
Product UPC
78358525642

Dimensions

Height
2.27 Inch
Length
3.81 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • 60 minute timer
  • Pre-set 5 button selection with permanent time markings
  • Manual override to OFF
  • Alert to OFF function - red LED will flash during the final 30 seconds
  • Designed for use on 120 or 277V AC circuits
