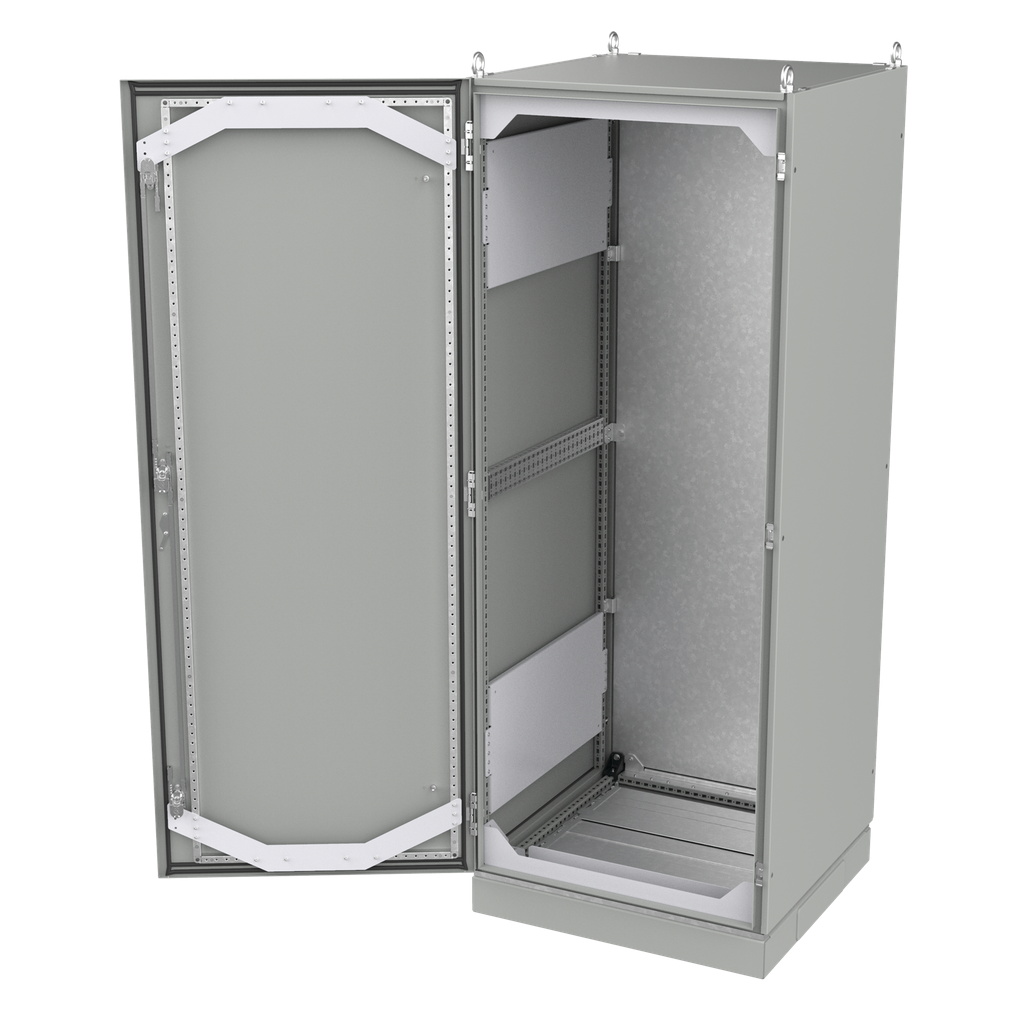

NVENT HOF P2K2088S PKG 2000x800x800

Manufacturer: nVent Hoffman | Catalog # P2K2088S | Codale Part # 4486408
$14,155.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ProLine G2 Seismic Industrial Packages aresolutions capable of withstanding Zone 4 seismic activity. This ProLine G2 Industrial Packages Seismic, P2K2088S item measures 2000x800x800mm with a material of Steel colored Lt Gray.

Technical Information

Color Coding
RAL 7035
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510362119
Color
Gray
Finish
Powder Coated
Product UPC
78351036211
Weight
500.05 lb

Dimensions

Depth
31.69 Inch
Height
78.82 Inch
Length
37-1/2 Inch
Thickness
1.9 mm
Width
31.8 in
DISK UNSPSC
39121334
Features
  • 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
  • Consistent with Type-12 Industrial Packages, but reinforced in all directions using seismically capable components/accessories to withstand forces present in seismic areas with a Zone-4 risk assignment
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Single door includes robust 3-point latch system to maintain door closure during seismic activity, with gussets included at the top and bottom of the door to increase rigidity
  • Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
  • Door bar system and two grounding studs present
  • Single door left-hinged standard, with Key-locking Flush Swing Handle standard
  • Galvanized Duro-Stand gland plate included
  • 100-mm Fully-Sealed Base with seismic mounting into frame's welded steel corners
  • Seismic Floor Mounting Brackets supplied loose for affixing enclosure to floor
  • White painted full subpanel fully recessed in rear-most mounting position: EZ-Load Glide Blocks supplied only in the front to support rear-most subpanel position
  • Top and bottom panel brackets, panel support brackets (side), and panel wedges to secure a populated subpanel are incorporated in the design
  • Gussets mounted to the frame's door opening at the top and bottom
  • White painted partial subpanels at top and bottom of frame's sides, unique seismic design
  • Depth-mounted 3-row Grid Strap at mid-point of frame
  • Solid Side Covers included standard
