Burndy YNA34R HYLUG™, Aluminum Tube Compression Terminal, 2 Holes, 3975 Kcmil ACSR, 3975 - 477 Kcmil Al, 230 kV, 175" Spacing, Die Index: 719

Manufacturer: Hubbell-Burndy | Catalog # YNA34R | Codale Part # 4486420
$125.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

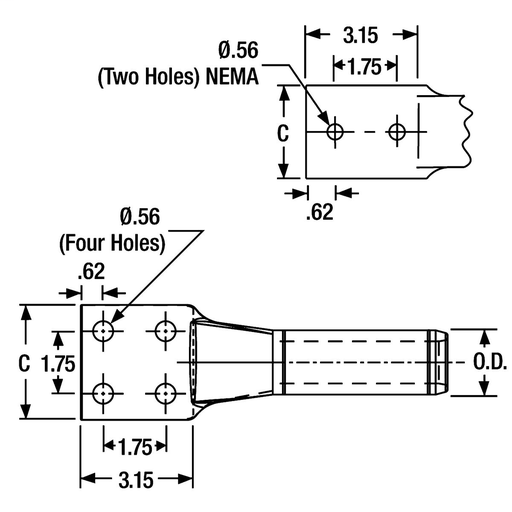

Al Tube Compression Terminal, 2 Holes, 397.5 Kcmil ACSR, 397.5 - 477 Kcmil Al, 230 kV, 1.75" Spacing

Technical Information

Barrel Type
Long
Bolt Hole Size
.50 in
Connection Type
Terminal
Material
Aluminum
Number of Holes
2 Hole
Plated?
No
Plating Type
Unplated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810016183
Product UPC
78181001618

Dimensions

Length
9.08 Inch
Overall Length
231 mm

Certifications and Compliance

Country of Origin
USA
CSA
No
