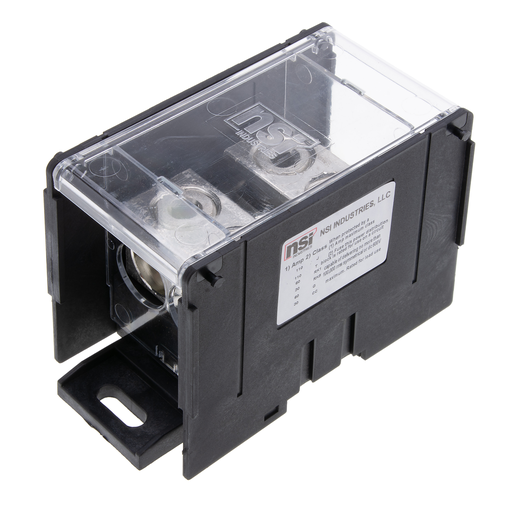

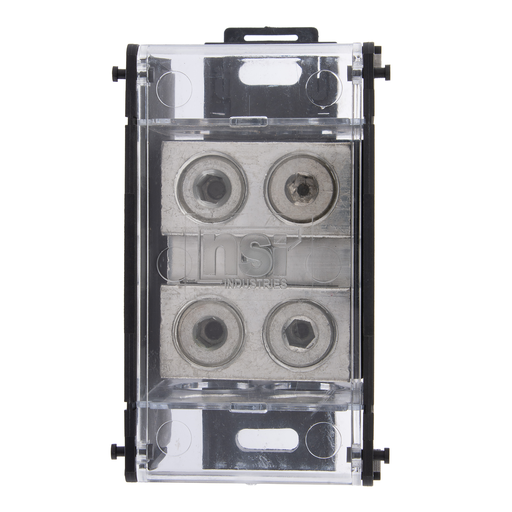

Product image for NSI NPDB-22-500-1 NPDB LINE 2X500-4
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

NSI NPDB-22-500-1 NPDB LINE 2X500-4

Manufacturer: NSI Connectors & Lugs | Catalog # NPDB-22-500-1 | Codale Part # 4486424
$198.17/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 2 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

Technical Information

Amperage
760 Amp
Applications
Splicing of 2 conductors of 22 -26 AWG UTP communication wiring
Material
Aluminum
Max Temperature
90 degrees C
Operating Temperature
90 degrees C
Size
L=5.800 - W=2.750 - H=3.750 IN
Type
Single Key Access
Voltage
600 Volt
Wire Size
(2) 500 MCM-4 AWG(LINE)-(2) 500 MCM-4 AWG(LOAD)

Manufacturer Information

Brand
NSI Industries
Sub Brand
NPDB Power Distribution Blocks

General Product Info

12-Digit UPC
662381367679
Color
Black,Orange,White
Finish
Tin Plated
Product UPC
66238136767

Dimensions

Height
3-3/4 Inch
Length
5.8 Inch
Warranty Length
1 yr
Width
1.94 in

Certifications and Compliance

Country of Origin
India
Certifications and Standards
  • cULus
  • UL Listed
  • UL 1953, UL 1059
Features
  • Locking Mechanism to lock/release block on DIN rail
  • Modular design allows for insertion on standard 35mm DIN rail or through mounting holes provided
  • Dual-rated AL9CU for use with copper or aluminum conductors
