Panduit FLCS2/9SOCPXAQ Fusion Splice LC Connector, OM3/OM4/OM5, Aqua

Manufacturer: PANDUIT | Catalog # FLCS2/9SOCPXAQ | Codale Part # 4486932
$64.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

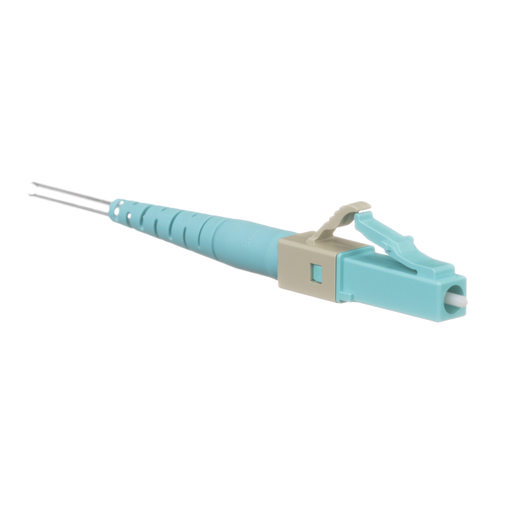

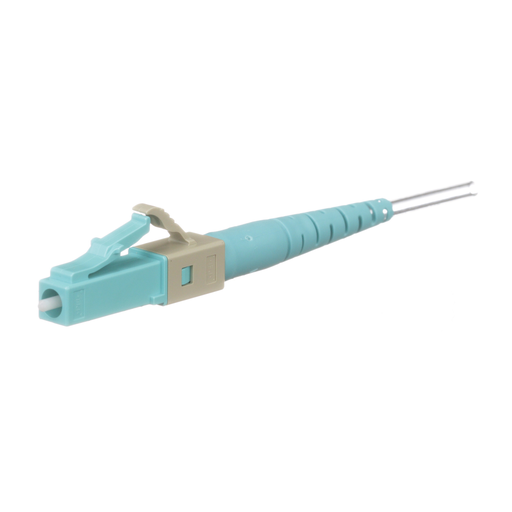

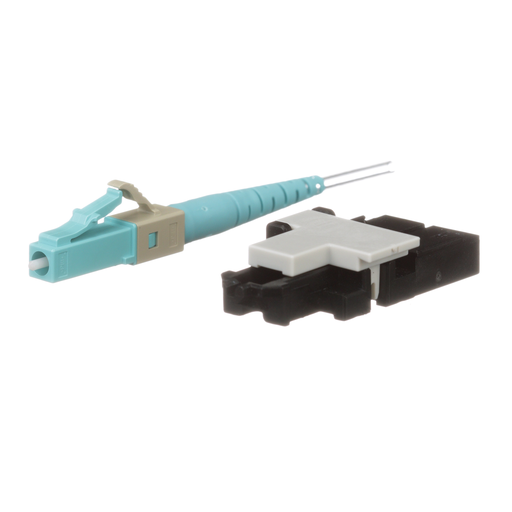

The fusion splice LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 fiber connector, intended for 900-micron tight-buffered or 250um loose-tube fiber installation. Field termination can be done in about two minutes using common fusion splice machines (not sold by Panduit). The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has an aqua- and grey-colored front assembly and rear assembly/boot.

Technical Information

Body Type
Simplex
Boot Color
Aqua
Connection Type
Fusion Splice
Fiber Type
OM3/OM4/OM5 50/125 ?m
Max Operating Temperature
167 degrees F
Min Operating Temperature
-40 degrees F
Temperature Rating
-40 to 167 degrees F
Type
Fusion Splice, LC Simplex

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
613056574014
Color
Aqua
Product UPC
61305657401

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Japan
Standards and Certifications
  • Standards Met: RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements
