Satco S23151 27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Manufacturer: SATCO Lighting | Catalog # S23151 | Codale Part # 4487659
$97.44/ea
ea
Log in or register to view your price, purchase history, and more!
29 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
27/22/18 Watt / CCT Selectable - LED HID Replace - EX39 100-277V - ColorQuick / PowerQuick Technology

Technical Information

Amperage
0.180-0.065 Amp
Average Rated Life
50000 hr
Beam Spread
360
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
100 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Material
Plastic
Lumens
2,520 Lumen
Material
Aluminum
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Type
Corncob
Voltage
100 Volt
Wattage
18 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923231513
Finish
White
Housing Color
Gray
Product UPC
04592323151
Weight
0.75 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • CCT Selectable-3000K, 4000K, 5000K

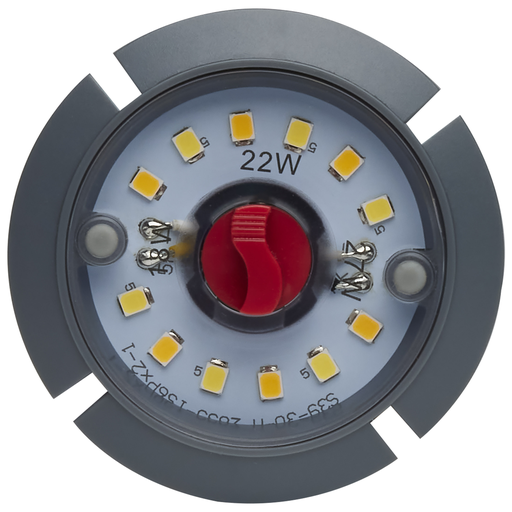

  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
  • DLC Listed
  • Power selectable
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
