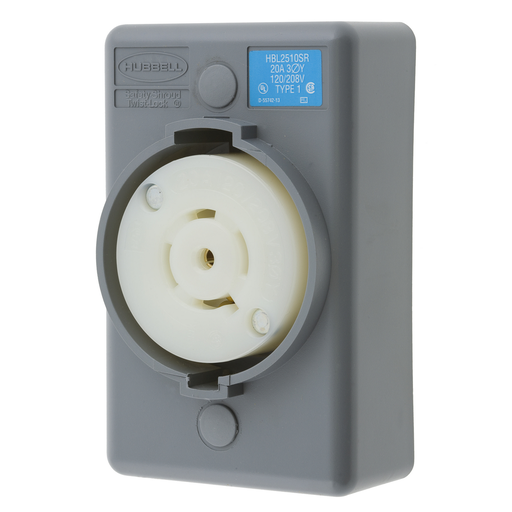

Product image for HCI HBL2510SR LKG S/SHRD RCPT, L21-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

HCI HBL2510SR LKG S/SHRD RCPT, L21-

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2510SR | Codale Part # 4488937
$91.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud®, Surface Mount Receptacle, One Gang, 20A 3-Phase Wye 120/208V AC, 4-Pole 5- Wire Grounding, NEMA L21-20R, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L21-20R
Number of Gangs
1 Gang
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Screw, 6 Terminals
Type
1-Gang
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585234984
Color
Gray/White
Environmental Conditions
Indoor Only
Product UPC
78358523498
Weight
0.50 lb

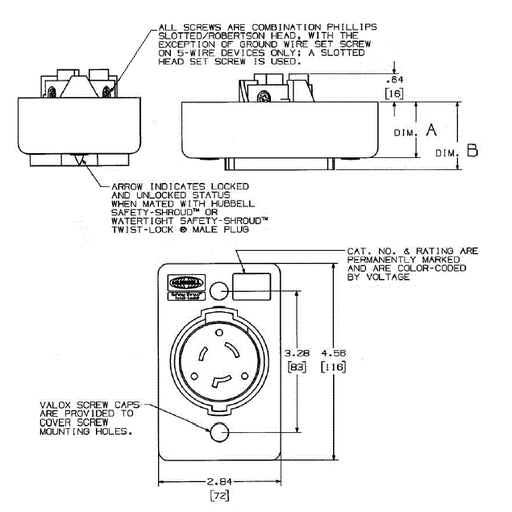

Dimensions

Height
1.71 Inch
Length
4.56 Inch
Width
2.84 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Surface Mount
