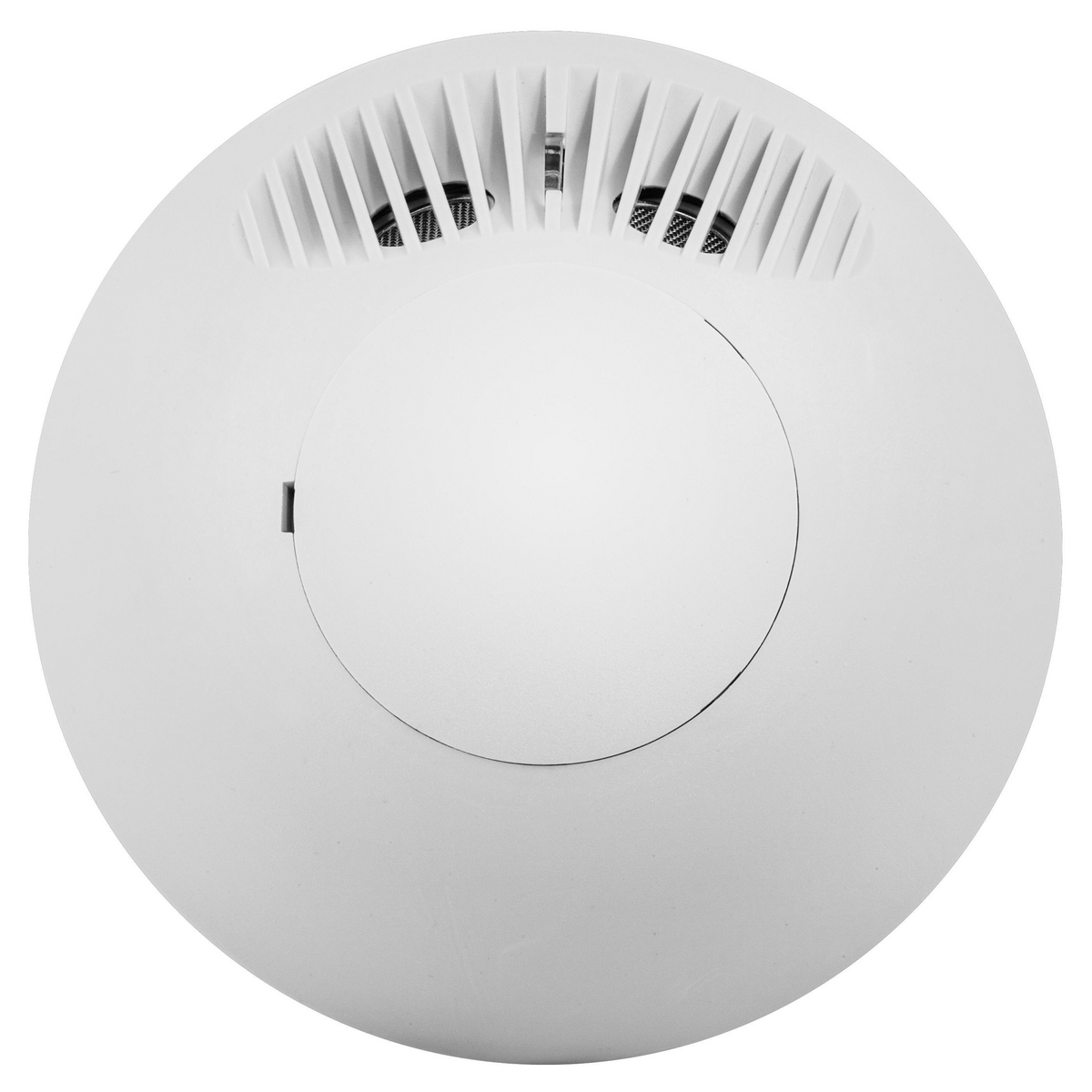

Hubbell ATU500CRPAT US OCCSENS, CEILING, 500 SQ FT, R/P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATU500CRP | Codale Part # 4491236
$283.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, Adaptive Technology Ultrasonic Ceiling Sensor, 500 Square FeetCoverage, With Photocell and Relay

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585392486
Color
Office White
Product UPC
78358539248

Dimensions

Height
1-1/2 Inch
Performance
  • Controls - Ambient Light - 1 to 1000 foot candles
  • Controls - Sensitivity - Adaptive 0 to 100%
  • Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes
  • Electrical - Isolated Relay - Normally open and normally closed terminals available
  • Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit
  • Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
  • Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity
  • Sensing Indicators - Ultrasonic - Green LED
Overview
  • Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyUltrasonic Ceiling Sensor, 500 Square Feet Coverage, With Relay
  • Install and Forget\" operation. Auto-adjusting adaptive technology eliminates manual adjustments
  • Coverage 500 sq. ft. (180°) with photocell and isolated relay, low voltage sensor
  • With Photocell and Relay
  • Digital, crystal controlled ultrasonic transmitter and receiver for coverage in each direction for superior sensing of movement
  • Excellent minor motion detection
  • Green LED indicates ultrasonic detection
  • Office White ABS enclosure blends with ceiling tile
  • Relay to interface with auxiliary systems such as HVAC
