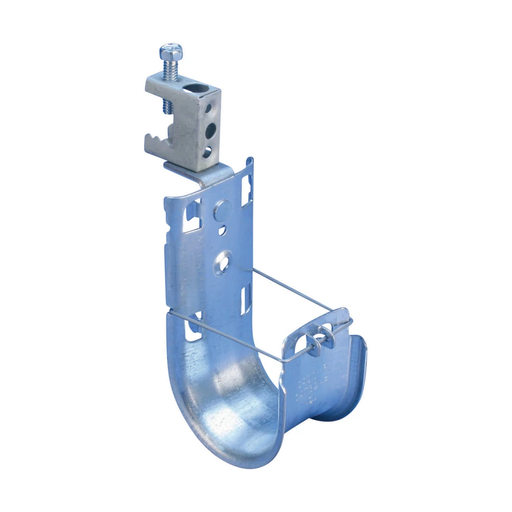

Caddy CAT21HPBCB Caddy Cat HP J-Hook with BC Beam Clamp, Swivel, 1 5/16" dia, 1/2" Max Flange

Manufacturer: Caddy Fasteners | Catalog # CAT21HPBCB | Codale Part # 4491694
$1,851.01/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
nVent CADDY Cat HP J-Hook with BC Beam Clamp, Swivel, 1 5/16" dia, 1/2" Max Flange

Technical Information

Applications
Datacom and Low Voltage; Electrical Fixing and Fastening
Material
Steel
Type
CADDY CAT HP J-Hook with BC Beam Clamp, Swivel

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856849605
Finish
Pregalvanized
Product UPC
78285684960
Weight
0.15 kg
Certifications
  • cUL CAN/CSA C22.2 No. 18.4-04
  • UL ANSI/UL 2239
Features
  • Easy installation to beam flanges

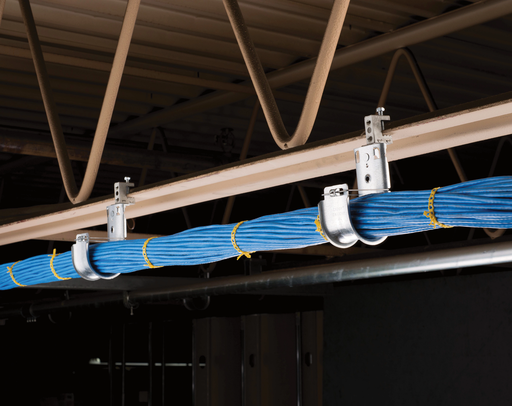

  • Rotates 360 degrees to support various directional runs of cable
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
