Product image for LITH TWS LED ALO SWW2 MVOLT PE DDB
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

LITH TWS LED ALO SWW2 MVOLT PE DDB

Manufacturer: Lithonia Lighting | Catalog # TWSLEDALOSWW2MVOLTPEDDBM2 | Codale Part # 4498956
$193.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The TWS LED Wall Pack offers the traditional shape you.ve grown accustomed to, coupled with the technology you need. Featuring three adjustable lumen outputs (ALO), three switchable color temperatures (SWW) 3000/4000/5000K CCT and a switchable dusk-to-dawn photocell. TWS LED wall packs allow for customized solutions to meet the unique requirements of each job site with 18 configurations in one product!Designed to blend in effortlessly, TWS LED wall packs eliminate unsightly marks and stains left by replacing older fixtures as their size and dimensions are the same as the typical legacy HID wall pack. Replace one or replace them all, TWS LED wall packs are cost-effective, energy efficient, and always in stock making them an ideal solution for many outdoor applications.

Technical Information

Applications
Education,Hospitality,Offices & Banks
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Polycarbonate
Mounting Type
Surface
Number of Lamps
1
Style
Traditional
Type
Wallpack
Voltage
120 Volt
Wattage
18 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196183403322
Color
Bronze
Environmental Conditions
Indoor and Outdoor
Finish
Gloss
Product UPC
19618340332
Shape
Rectangle
Weight
6 L

Dimensions

Height
11 Inch
Length
6.89 Inch
Width
5.25 in
Features
  • DESIGN: The Lithonia Lighting TWS LED Wall Pack is equipped with adjustable lumen output, switchable CCT, and a switchable photocell allowing the contractor to set to a level perfectly suited for the job site.
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
  • PHOTOCELL: Switchable photocell for dusk-to-dawn operation
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium® (DLC) qualified product
  • VOLTAGE: 120V-277V
  • HOURS OF LIFE: LEDs maintain 90% of light output at 50,000 hours of service or L90/50,000 hours

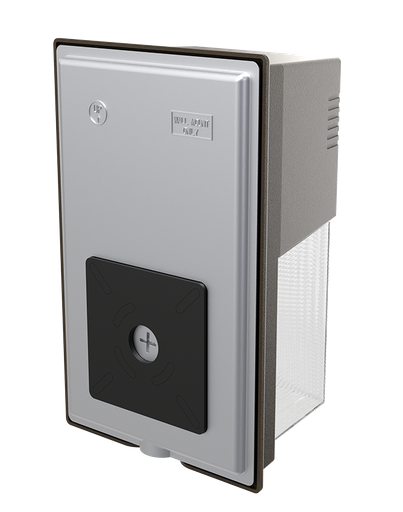

  • INSTALLATION: Back housing easily mounts to any recessed junction box. Mount on any vertical surface. Not recommended in applications where a sprayed stream of water can come in direct contact with polycarbonate lens.
  • CONSTRUCTION: Die-cast aluminum housing and front cover is impact-resistant polycarbonate lens which is fully gasketed. All electronics are protected in the upper housing. Housing is sealed against moisture and environmental contaminants.
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: Width: 6.9 in x Height 11 in x Depth 5.2 in
Applications
  • Education
  • Hospitality
  • Offices & Banks
Standards
  • C-UL-USDLC Premium
  • DLC Standard
