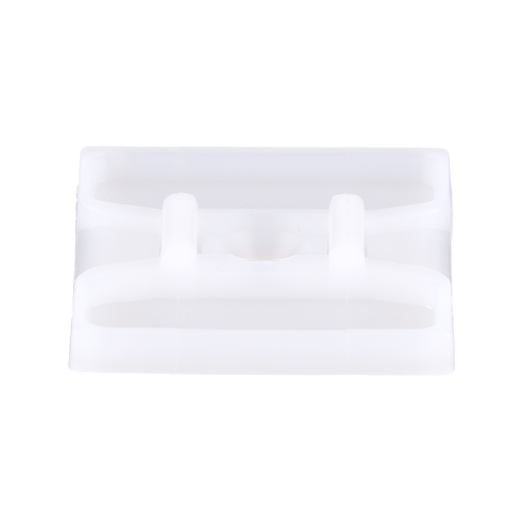

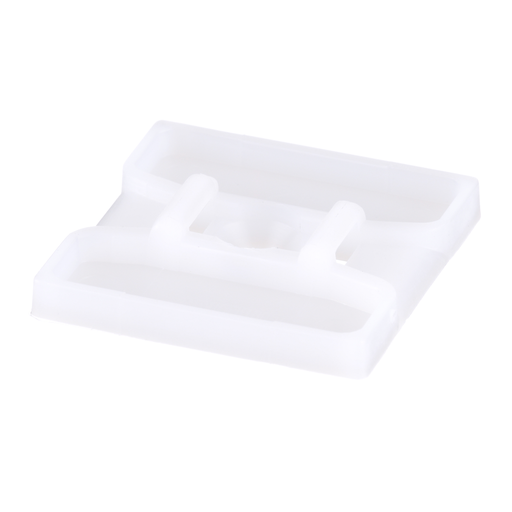

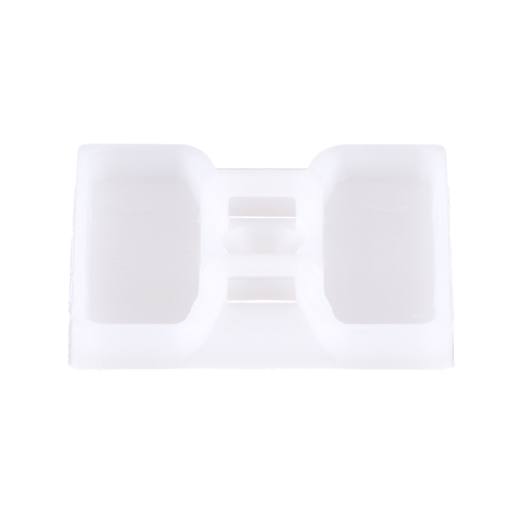

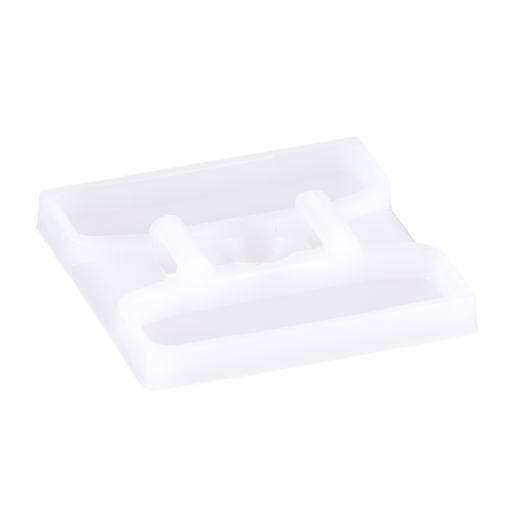

Panduit ABMS-S6-D Cable Tie Mount, #6 Screw (M3), 1.1"x1.1" (27.9mm x 27.9mm), WH

Manufacturer: PANDUIT | Catalog # ABMS-S6-D | Codale Part # 4500483
$1,522.39/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

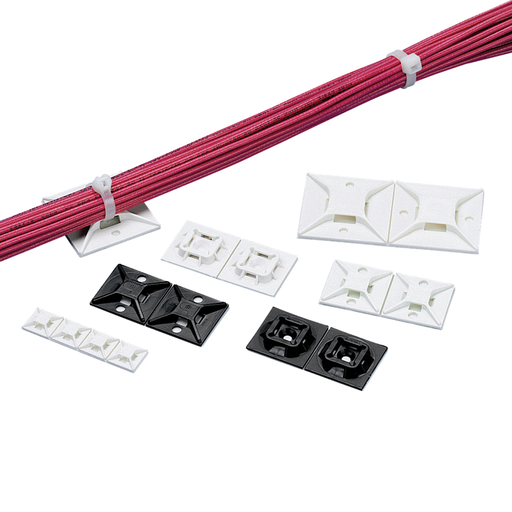

Panduit.s ABMS-S6-D 4-Way Cable Tie Mounts allow cable tie entry from all four sides. They can easily be applied with user supplied adhesive or size #6 (M3) screws. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are 1.1" x 1.1" (27.9mm x 27.9mm), are white in color and come in packages of 500.

Technical Information

Applications
Indoor
Material
Nylon
Max Operating Temperature
185 degrees F
Min Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
-76degrees F (-60degrees C) - 185degrees F (85degrees C)
Type
Cable Tie Mount

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983580576
Color
White
Environment
Indoor
Product UPC
07498358057

Dimensions

Height
3.3 mm
Overall Length
1.13 in
Width
1.13 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
Prop 65
  • No
