PAN FX2ERLNSNSNM003 Opti-Core® 2 Fi

Manufacturer: PANDUIT | Catalog # FX2ERLNSNSNM003 | Codale Part # 4501052
$139.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

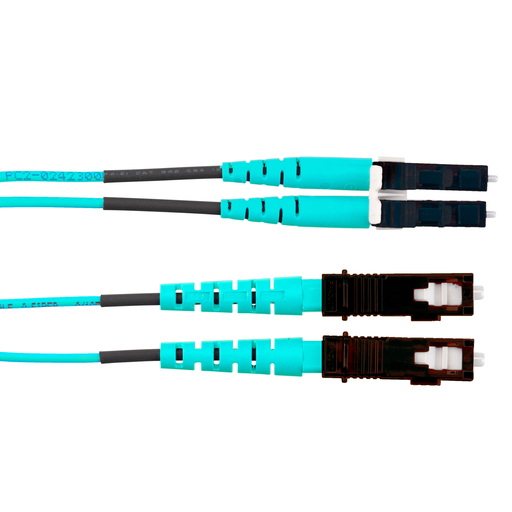

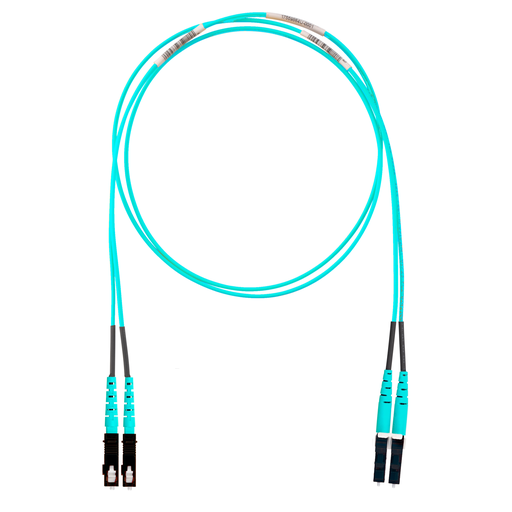

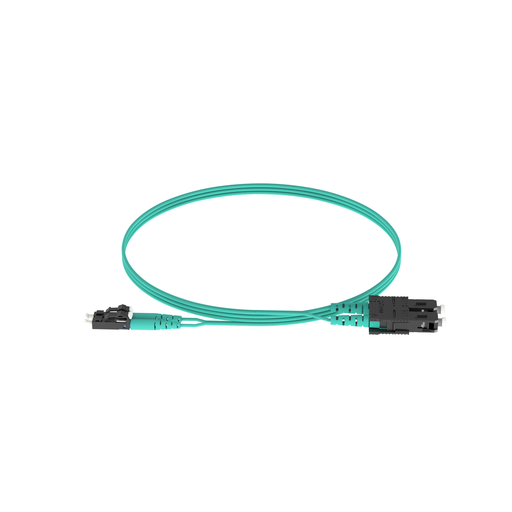

The duplex fiber patch cord is OM3 with a 1.6mm jacket. It is Riser (OFNR) rated and features LC Duplex to SC Duplex connectors. It has standard insertion loss and is 3 meters in length.

Technical Information

Applications
Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Aqua
Fiber Type
OM3
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Connector - Keyed H (Aqua)
Standard
CSA,NOM,UL
Temperature Rating
140 degrees F
Type
OS2, 2-Fiber
Wire Size
1.6 mm

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983730599
Cable Color
Aqua
Color
Aqua
Environment
Indoor
Product UPC
07498373059

Dimensions

Length
9.84 Inch
Outer Diameter
0.062 in
Outside Diameter
NA
Overall Length
9.84 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
