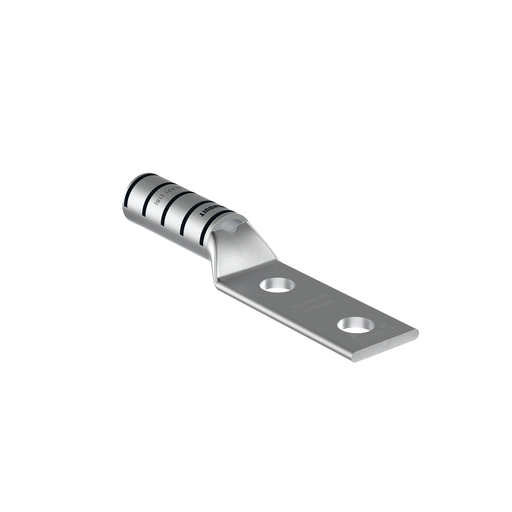

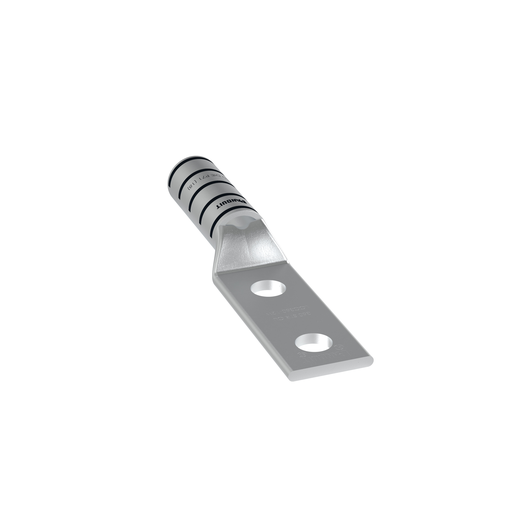

Panduit LCC350-12W-X Pan-Lug™ Copper Blank Tongue Compression Lug

Manufacturer: PANDUIT | Catalog # LCC350-12W-X | Codale Part # 4506866
$6,824.45/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCC350-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
2.24 in
Barrel Type
Long Barrel Length With Inspection Window
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
2 Hole
Size
350 kcmil Code
Stud Size
1/2 In.
Tongue Thickness
0.17 in
Tongue Type
Standard
Tongue Width
1.28 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983798438
Color
Red
Product UPC
07498379843

Dimensions

Outer Diameter
0.88 in
Overall Length
5.76 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
