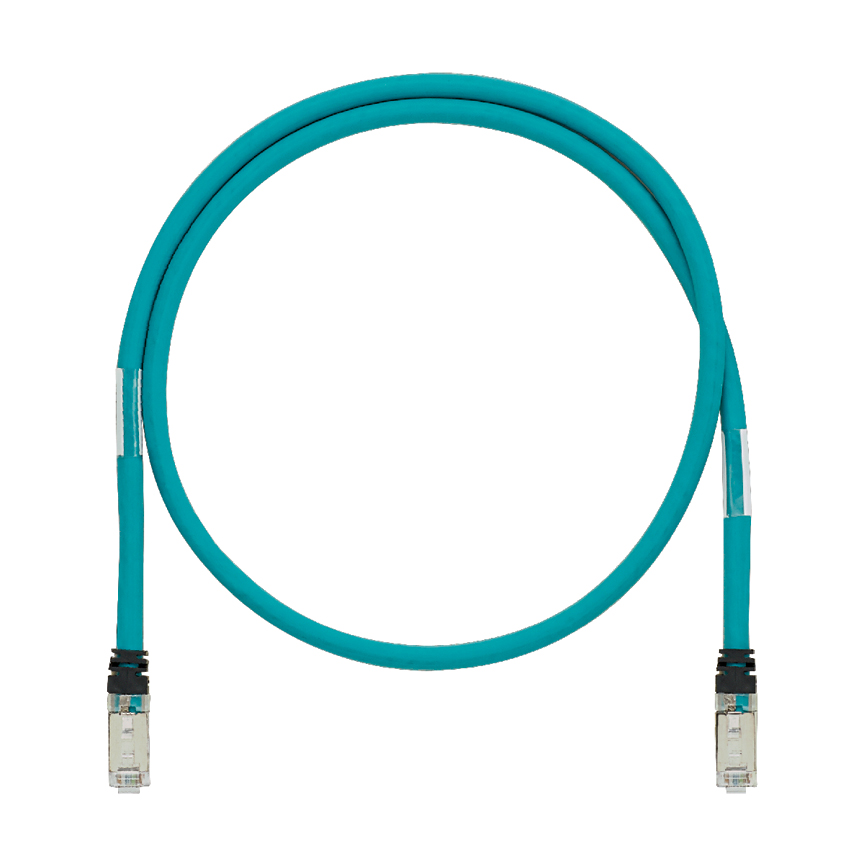

Product image for Panduit ISTPHCH2.5MTL IndustrialNet™ Category 5e Shielded 600 V-Rated Patch Cord
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit ISTPHCH2.5MTL IndustrialNet™ Category 5e Shielded 600 V-Rated Patch Cord

Manufacturer: Panduit | Catalog # ISTPHCH2.5MTL | Codale Part # 4507700
$132.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Patch Cord, IndustrialNET, Category 5e, Shielded, 600V, RJ45 plug to RJ45 plug, Teal, 2.5 meter.

Technical Information

Applications
(1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3)1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the cont
Boot Color
Black
Cable Type
24 AWG SF/UTP
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
IP Rating
IP20
Max Operating Temperature
70 degrees C
Min Operating Temperature
-20 degrees C
Performance Level
Category 5e
Plug Type
Modular Plug
Temperature Rating
158 ?degrees F
Type
Industrial, Category 5e, Shielded
Voltage
600 Volt
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
613056260429
Color
Teal
Jacket Material
Thermoplastic Elastomer
Product UPC
61305626042
UNSPSC
43223303

Dimensions

Cable Length
2.5 m
Length
8.25 Foot
Outer Diameter
7.2 mm
Outside Diameter
0.29 in
Overall Length
2.5 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant
