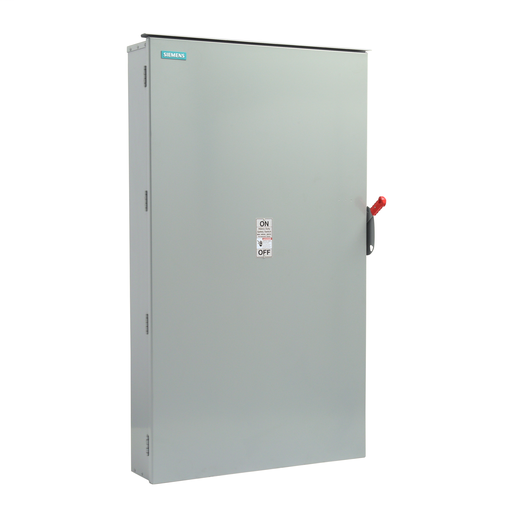

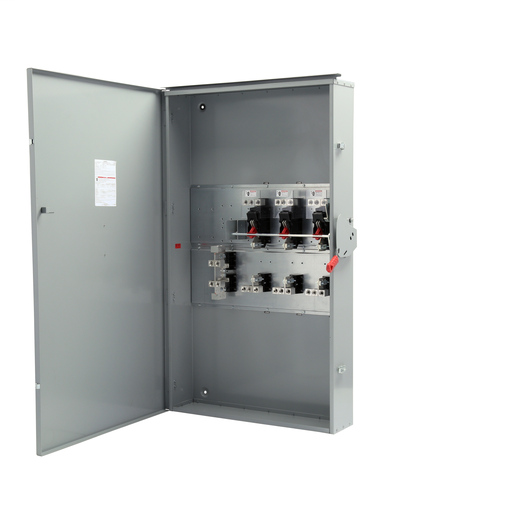

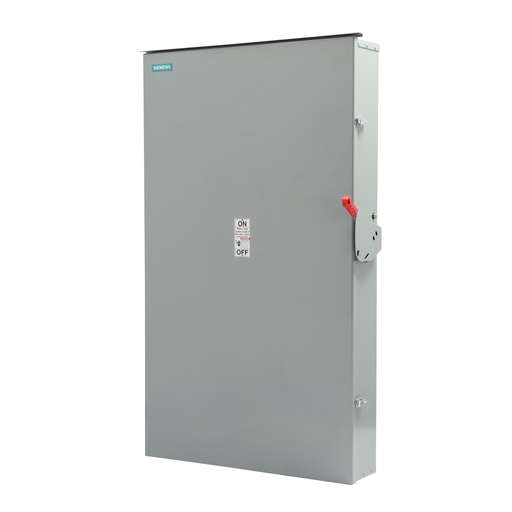

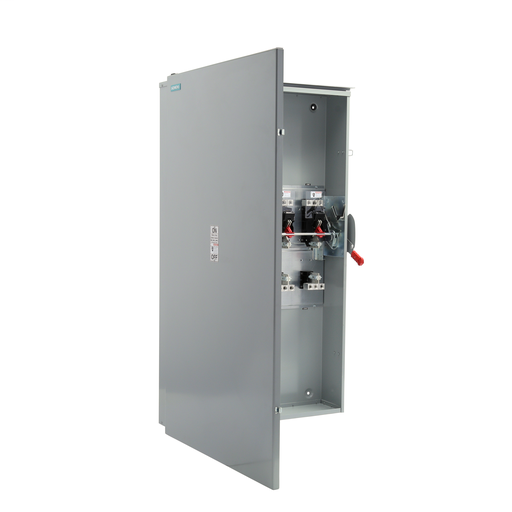

Siemens HF327NR 240 VAC/250 VDC 800 Amp 3-Pole 4-Wire NEMA 3R Heavy Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # HF327NR | Codale Part # 450777
$9,660.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Fuse and solid neutral Fused in a type 3R enclosure (outdoor). Rated 240VAC (800A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
800 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
3500
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
240 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643150744
Product UPC
78364315074
Weight
353.000 lb

Dimensions

Height
11 Inch
Length
72 Inch
Width
42.200 in

Certifications and Compliance

Country of Origin
USA
