PAN CTAPR2/0-2/0-L Panduit CTAPR2/0

Manufacturer: PANDUIT | Catalog # CTAPR2/0-2/0-L | Codale Part # 4510211
$2,851.81/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Installation / Instruction Manual

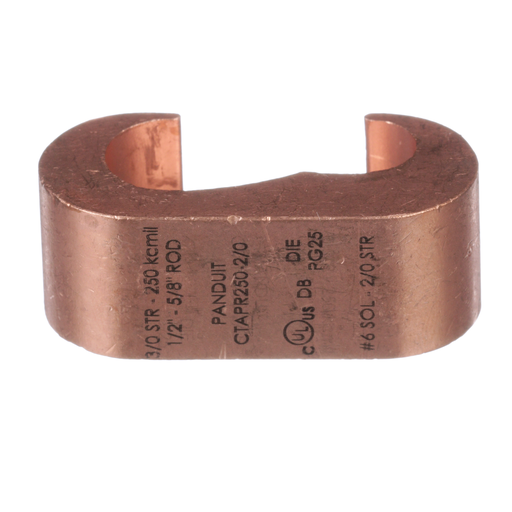

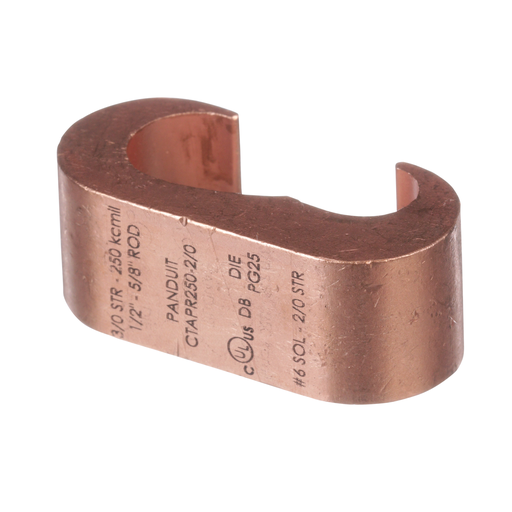

The CTAPR2/0-2/0-L Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod applications. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36kV and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies.

Technical Information

Material
Copper
Type
Compression Tap

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
613056839755
Product UPC
61305683975

Dimensions

Height
1.55 Inch
Overall Length
0.75 in
Width
0.74 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
Y
Prop 65
  • Y
Standards and Certifications
  • Standards Met: cULus Listed for Direct Burial Grounding Applications to UL467 and Power Applications up to 35kV
