KLEIN 93CPLG Compact Green Planar L

Manufacturer: Klein Tools | Catalog # 93CPLG | Codale Part # 4510301
$199.98/ea
ea
Log in or register to view your price, purchase history, and more!
21 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
The Klein Tools’ Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ?1mW @ 508-530nm).

Technical Information

Accuracy
33' (10m)
Applications
Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
Battery Life
6 hr
Display Type
No Display
Material
ABS,PC,TPE
Mounting Type
Magnetic Bracket, Tripod Mount
Type
Self-Leveling Laser Level

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644930133
Product UPC
09264493013
Weight
0.930 lb

Dimensions

Height
4 Inch
Overall Length
4.2 in
Width
3.2 in

Certifications and Compliance

Country of Origin
China
Warnings
  • Exposing eyes to laser radiation can result in severe and permanent eye injuries.
  • Do not use the instrument if it appears to be damaged.
  • \"Do not modify the instrument in any way, as to do so could result in emission of hazardous laser.
  • See instruction manual for additional warnings.
  • Do not modify the instrument in any way, as to do so could result in emission of hazardous laser.

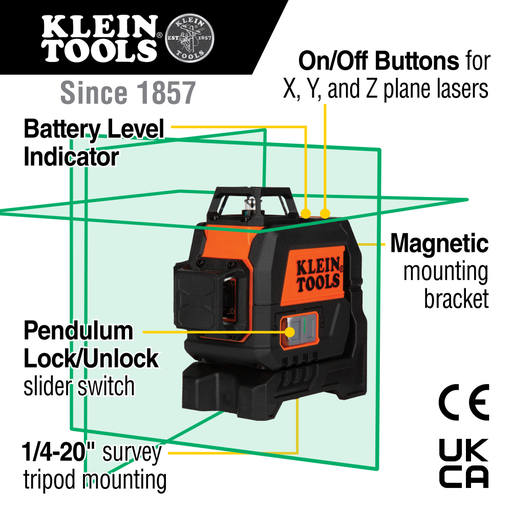

Features

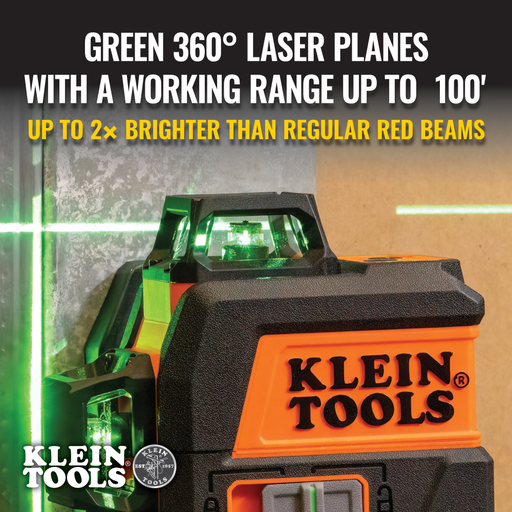

  • Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams
  • Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
  • High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
  • Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles
  • Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
  • More than 6-Hour runtime provides lasers power for all day use
  • Durable overmold design that is IP54 rated protects the laser level from water and dust
  • Manual Tilt Mode, Out of Angle Notification, Battery Fuel Gauge
  • Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount
