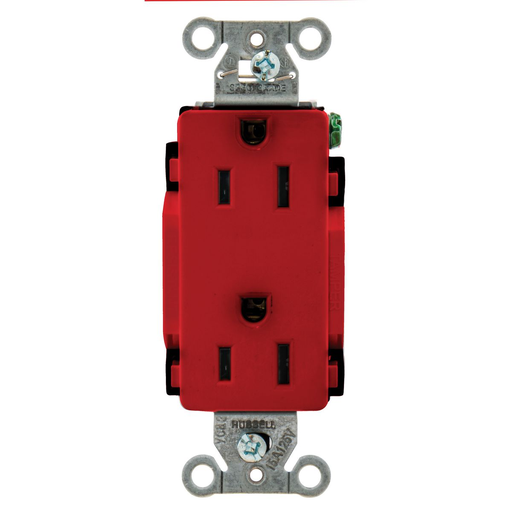

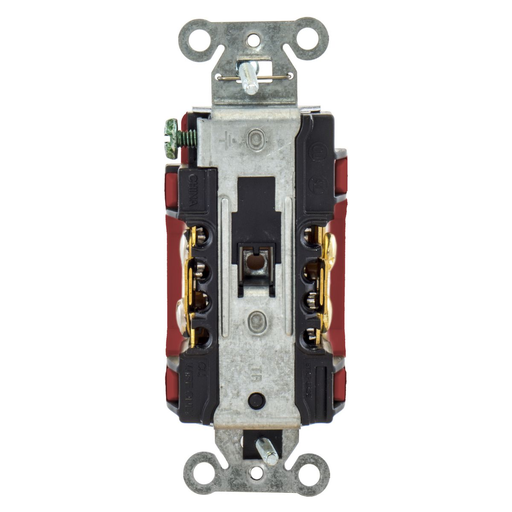

Hubbell DR15RDECO Receptacle, COMM GRD, 15A 125V, 5-15R, R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR15R | Codale Part # 4513526
$4.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Decorator Duplex Receptacle, Commercial Grade, Smooth Face, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Side Wired Only, Red.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon,Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Contact Material
Brass
Current
15 Amp
Dielectric Strength
2000 V
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Commercial/Specification
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Screw Material
Plated Steel
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Back and Side Wired
Temperature Rating
-40 to 75 degrees C Continuous
Type
Decorator, Self Grounding
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585197685
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, UL 94 Requirements, V2 Rated Flammability
Product Series
Commercial Specification Grade
Product UPC
78358519768
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.29 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
  • Self Grounding
