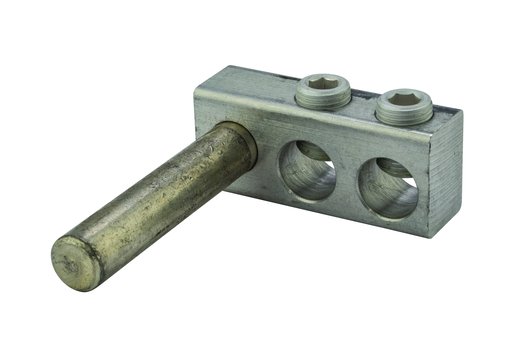

NSI TS350-2 Transformer Stud Connec

Manufacturer: NSI Connectors & Lugs | Catalog # TS350-2 | Codale Part # 4513647
$63.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
5/16 IN
Conductor Size
350 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Temperature Rating
90 degrees C
Type
Transformer Stud Connector
Voltage
600 Volt
Wire Size
350 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Utilities

General Product Info

12-Digit UPC
662381023629
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
Product UPC
66238102362

Dimensions

Height
1-1/4 Inch
Length
2.95 Inch
Warranty Length
1 yr
Width
0.88 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Clear plated for low contact resistance; stud is tin plated copper which provides low contact resistance for connection to transformer
  • For use with copper and aluminum conductors
  • Hole configuration varies
Certifications and Standards
  • ANSI
