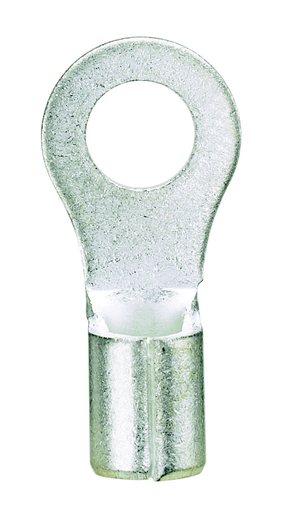

Panduit P18-56R-M Ring Terminal, Non-Insulated, 22 - 16 AWG, 5/16" stud size

Manufacturer: Panduit | Catalog # P18-56R-M | Codale Part # 4514224
$626.98/ea (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Ring Terminal, 22 – 16 AWG, 5/16" stud size, non-insulated, bulk package.

Technical Information

Barrel Length
0.34 in
Barrel Type
Brazed Seam
Color Coding
Silver
Conductor Size
18 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Min Operating Temperature
105 degrees C
Size
M8
Stud Hole Size
M8
Tc Connection
Standard
Temperature Rating
302 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
22-16 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983802111
Color
Silver
Finish
Tin Plated
Product Type
Terminals
Product UPC
07498380211
UNSPSC
39121409

Dimensions

Length
0.91 Inch
Outer Diameter
0.46 in
Overall Length
0.91 in
Width
.46 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
