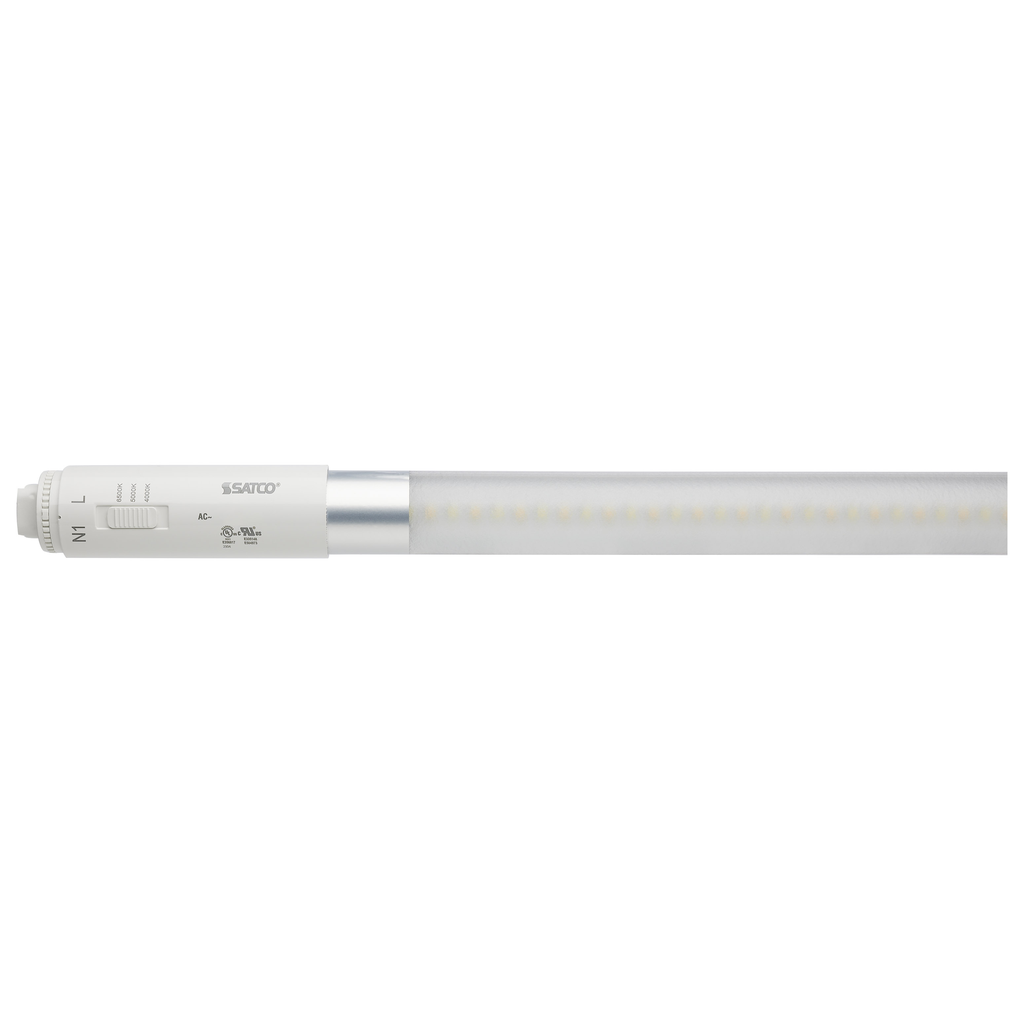

Product image for SATCO S16436 24T8/LED/HO-SIGN/60-3C
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SATCO S16436 24T8/LED/HO-SIGN/60-3C

Manufacturer: SATCO Lighting | Catalog # S16436 | Codale Part # 4514928
$44.38/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
SATCO|NUVO's S16436, 24-watt T8 lamp is the perfect lighting solution for balancing energy efficiency, advanced technology, and style. This double sided LED lamp delivers 360 degrees of illumination in 4000K, 5000K, or 6500K CCT. Color temperature and lumens selectable, this T8 lamp delivers 50,000 hours of exceptional illumination.

Technical Information

Amperage
0.200-0.087 Amp
Average Rated Life
50000 hr
Beam Spread
360
Color Temperature
Cool White To Daylight
Correlated Color Temp
4000 K
Dimmable?
No
Incandescent Equivalent
100 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Frost
Lens Material
Plastic
Lumens
3,300 Lumen
Material
Polycarbonate
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
24 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923164361
Finish
White
Product UPC
04592316436
Weight
0.95 lb

Dimensions

Length
60 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 4000K/5000K/6500K CCT Selectable
  • Double sided LED for 360 degrees of illumination
  • UL Type B - Ballast bypass installation
  • Rated for 50,000 hours
  • 120-277 Volts
  • Damp location rated
  • FCC and RoHS compliant
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
Replaced By Products
  • S16406
  • S16407
