SATCO S28938R1 110W/LED/HID/SB/3CCT

Manufacturer: SATCO Lighting | Catalog # S28938R1 | Codale Part # 4515396

$294.06/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch

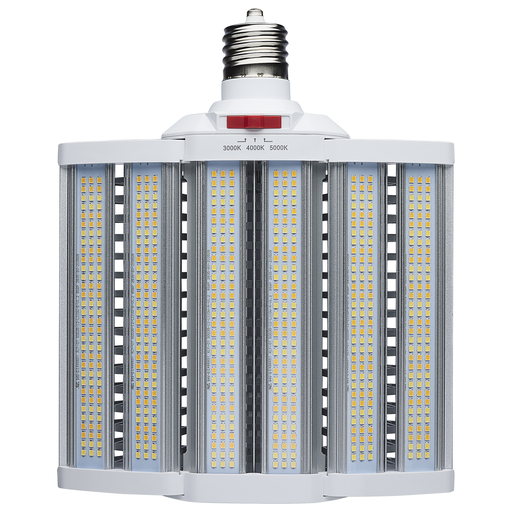

SATCO|NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make this lamp the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

Technical Information

Amperage
0.750-0.325 Amp
Average Rated Life
50000 hr
Beam Spread
180
Color Temperature
Soft White To Natural Light
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
750 W
Indoor Outdoor
Outdoor
Lens Material
Polycarbonate
Lumens
13,500 Lumen
Material
Aluminum
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Type
Expandable Hi-Pro
Voltage
120 Volt
Wattage
100 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923298882
Finish
White
Product UPC
04592329888
Weight
3.68 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • CCT and Wattage Selectable
  • Expandable Light Panels
  • 320 Degree Rotating EX39 Base
  • Integrated 4kV Surge Protection
  • Advanced Heat Dissipation
  • Type B Ballast Bypass
  • 5 Year Warranty
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
  • Direct wire 120-277V line voltage
  • No ballast or external driver required
Replaced By Products
  • S28937
  • S28938
