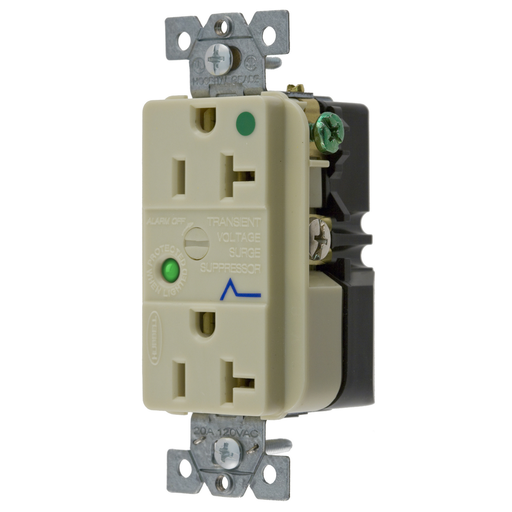

Hubbell HBL8362ISADUP SPD Receptacle, HG, 20A 125V, 5-20R, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8362ISA | Codale Part # 451557
$184.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Surge Protective Devices, SPIKESHIELD Hospital Grade Surge Suppression Receptacle, Duplex, 20A 125V, 5-20R, Ivory

Technical Information

Amperage
20 Amp
Applications
Decorator Duplex with Light and Alarm
Current
20 Amp
Frequency
60 Hz
Grade
Hospital
Material
Composite/Nylon
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
0 To 60 degrees C
Response Time
5n s
Size
Standard
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498 Receptacles
Tc Connection
Terminal Screws
Temperature Rating
-32 to 140 degrees F
Type
Standard
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585060514
Class
Normal and Common Mode
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358506051
Weight
0.3 lb

Dimensions

Height
1.8 Inch
Length
4.3 Inch
Width
2.100 in

Certifications and Compliance

Country of Origin
China
Features
  • High-impact nylon face resists breakage
  • Automatic grounding clip attached to bridge
  • Power-on indicator light verifies instantly that power is available
  • Distinctive surge symbol for visual identification of surge suppression receptacle
  • Standard Product
