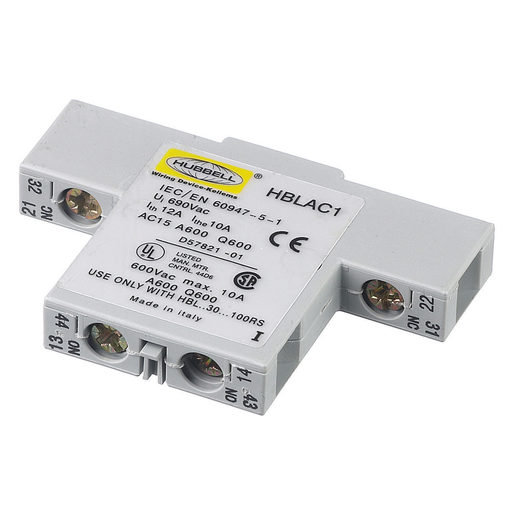

Hubbell HBLAC1 Break After Main Break Safety Enclosure Auxiliary Contact

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLAC1 | Codale Part # 451569
$69.61/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Break after Main Break Auxiliary Contact, For 30A and 60A and 100A Pilot Duty.

Technical Information

Amperage
10 Amp
Applications
For HBLDS Series
Connection Type
Screw
Contact Configuration
2 NO, 2 NC
Contact Rating
10A
Load Rating
2500 W
Mounting Type
Front
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
12K Enclosure Rating,CSA Standard,Type 3R,UL Standard
Style
Auxiliary Contacts
Tc Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum without Impact
Type
Break Before Break, Standard
Voltage
250 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585955117
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Composite
Product Series
Fused,Non
Product UPC
78358595511
Used With
HBLDS Series Disconnect Switches
Weight
0.1 lb

Dimensions

Height
1.54 Inch
Length
4.16 Inch
Width
1.800 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Industrial GradeUnfused Switch
  • Break after Main Break Auxiliary Contact
  • For 30A and 60A and 100A Pilot Duty.
