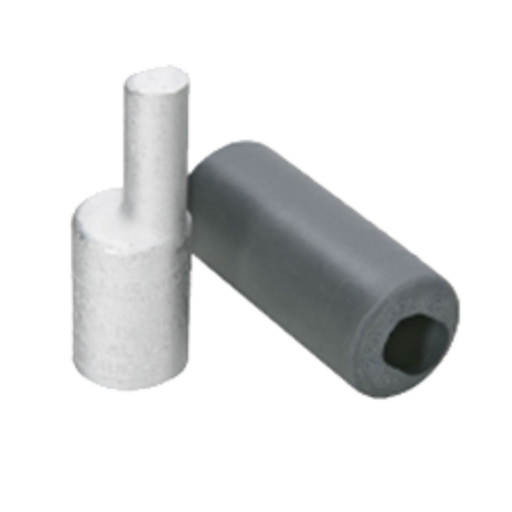

Burndy AYPO900 WIRE: 900-600 kcmil AL AL9, STRIP LENGTH: 2-3/8",DIE(CRIMPS):U42ART(4), Install with Y39,Y750,Y46, UL LISTED 90 C, 600 VOLTS

Manufacturer: Hubbell-Burndy | Catalog # AYPO900 | Codale Part # 4515701
$162.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
WIRE: 900-600 kcmil AL AL9, STRIP LENGTH: 2-3/8",DIE(CRIMPS):U42ART(4) TOOL:Y39,Y750,Y46UL LISTED 90 C, 600 VOLTS.

Technical Information

Applications
Offset applications
Conductor Material
ALUMINUM / COPPER
Conductor Size
600 kcmil
Connection Type
OFFSET PIN
Insulation Type
TPV
Material
Aluminum
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin
Temperature Rating
194
Type
Aluminum Pin Adapters
Voltage
35000 Volt
Wire Size
900 kcmil

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
621945437395
Color
Gray
Finish
Tin-Plated,Tin-Plated
Product UPC
62194543739

Dimensions

Height
0.91 Inch
Length
4.27 Inch
Overall Length
114 mm
Width
1.50 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
  • Provides the shortest connector length design possible permitting easy installation in equipment with limited working space
  • Solid electro-tin plated aluminum plug
  • Proper electrical connection made easily and eliminates the \"how tight is tight\" issue
  • Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment
  • Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment
  • Electro-tin plating resists corrosion
  • Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection
  • EPDM rubber covers supplied with each connector and rated for 600V eliminating taping
  • Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements
  • Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened
  • Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
