NVENT HOF MKS16104PER5 Compact Enc

Manufacturer: nVent Hoffman | Catalog # MKS16104PER5 | Codale Part # 4517758
$2,728.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

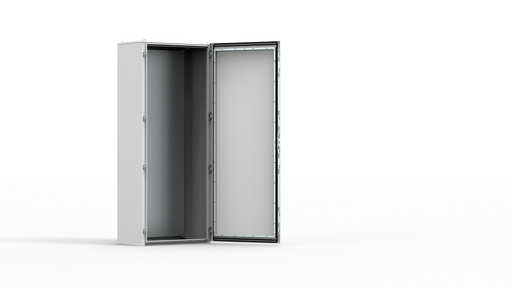

The mild steel single door compact, available in many sizes, is suited for many applications eliminating failure. This Mild Steel Single Door Compact Version, MKS, MKS16104PER5 item measures 1600x1000x400mm has a material of Mild Steel color Light Gray, finish Powder Coated.

Technical Information

Body Thickness
1.35 mm
Color Coding
RAL 7035
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510504922
Color
Gray
Finish
Powder Coated
Product UPC
78351050492
Weight
248.20 lb

Dimensions

Depth
15-3/4 Inch
Height
40 Inch
Length
63.37 Inch
Width
39.37 in
Features
  • Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
  • Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 | TYPE 12 | IK 10.
  • Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame (except PE version). Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
