Burndy YAV18BOX Uninsulated Ring Terminal For 22 - 18 AWG

Manufacturer: Hubbell-Burndy | Catalog # YAV18BOX | Codale Part # 4519791
$100.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Compression Lug, Heavy Duty, Ring Tongue, 22-18 AWG, #8-#10 Stud, Short Barrel, Tin Plated

Technical Information

Conductor Size
18 AWG
Connection Type
Ring Terminal
Material
Copper
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810542903
Color
Black,White
Product UPC
78181054290

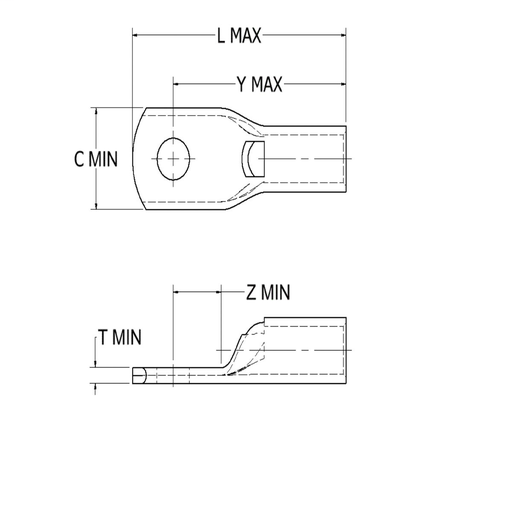

Dimensions

Length
0.76 Inch
Overall Length
19 mm

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
  • Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
  • Double thick tongue structurally a very strong terminal tongue
  • Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
  • Internally bevelled barrel for easy cable entry, especially for flexible conductors
  • Inspection hole provides easy visual check for proper conductor insertion
  • Electro-tin plated for a long lasting durable corrosion resistance
