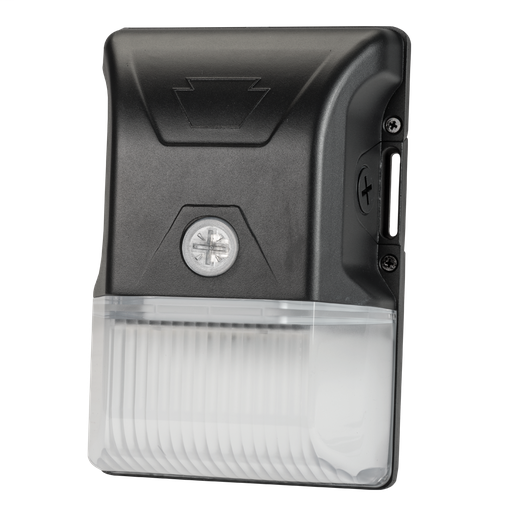

Small 20W Non-Cutoff LED Wall Pack | 120-277V Input | 3000-5000K | Low Profile Housing | Bronze Finish | Impact Resistant Lens
Application: Building mount for exterior illumination - entryways, pathways, stairwells, security, and other general site lighting requirements

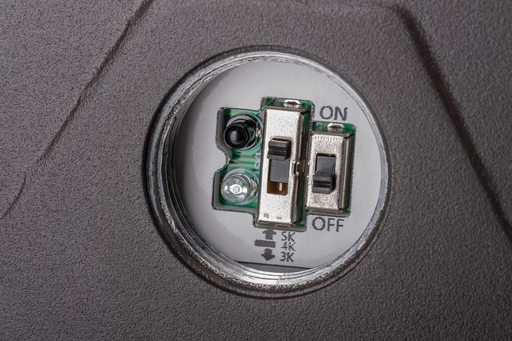

- Keystone Color Select technology (3000/4000/5000K)
- Small non-cutoff design can be mounted virtually anywhere, offering uniform vertical and horizontal distribution pattern for general safety and security illumination needs
- Heavy duty die cast aluminum housing with (3) 1/2-inch threaded conduit hubs: (1) on back and (1) on each side
- Powered by Keystone 0-10V dimming LED drivers, dimmable to 10%
- Built-in dusk-to-dawn photocell behind translucent 1/2-inch threaded plug with anti-yellowing agent
- ADA Compliant with low-profile housing less than 4-inch deep
- Impact-resistant and highly diffused polycarbonate lens with anti-yellowing agent offers reduced glare for low mounting height applications
- Ambient operating temperature: -40ºC/-40ºF to 50ºC/122ºF, Power Factor: >0.95, and THD: <20%
- UL Certified for wet locations, IP65 rated, Fixture impact rating IK07
- LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture temp
- Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
