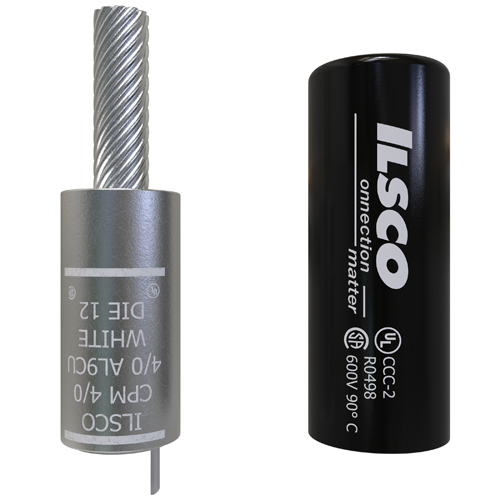

Product image for Ilsco CPM-4/0 Copper Compression Pigtail Adaptor, Conductor Size 4/0, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CPM-4/0 Copper Compression Pigtail Adaptor, Conductor Size 4/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-4/0 | Codale Part # 452452
$54.54 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 4/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,

Technical Information

Applications
Copper Pigtail Adaptor
Barrel Length
1.875 in
Barrel Type
Standard
Color Coding
White
Conductor Material
Aluminum,Copper
Conductor Size
4/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum-Copper
Material
Copper
Number of Conductors
1
Pin Length
1.355 in
Size
L:4.125;W:1.086;H:1.086 IN
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,UL File Number: E62525
Temperature Rating
90 degrees C
Type
CPM:AL/CU PIN
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008548
Color
White
Product UPC
78366900854
Weight
0.196 lb

Dimensions

Height
1.086 Inch
Inside Diameter
0.549 in
Length
4-1/8 Inch
Outside Diameter
0.906 in
Width
1.086 in
