HWDK HBL460C6W PS,IEC,CONN 3P4W,60/

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL460C6W | Codale Part # 4527362
$964.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

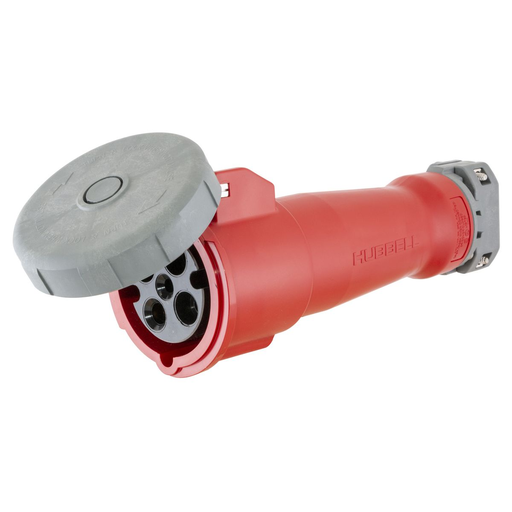

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector, 60/63 A, 380-415 VAC, 3-Pole 4-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k

Technical Information

Applications
High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Material
Thermoplastic
Number of Conductors
4-Wire Grounding
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Standard
CSA,File LR280C,IEC 60309-1 IEC 60309-2,UL,UL1682
Temperature Rating
Maximum Continuous: 75?degrees C; Minimum Continuous: -40?degrees C w/o impact, -25?degrees with impact.
Type
Connector
Voltage
380-415 VAC
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585365480
Color
Red
Environmental Conditions
Watertight
Product UPC
78358536548

Dimensions

Height
11-1/2 Inch
Length
5-1/2 Inch
Width
4.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Watertight
