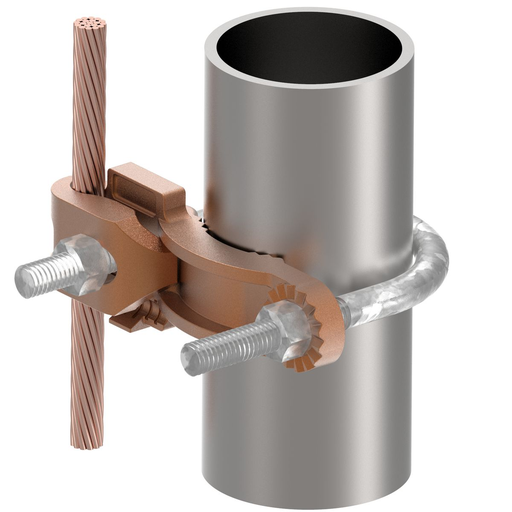

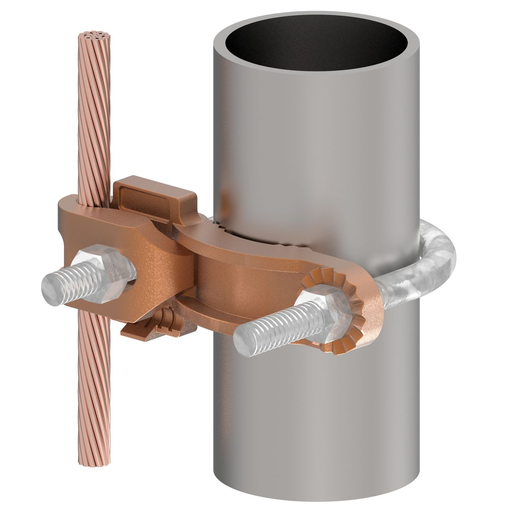

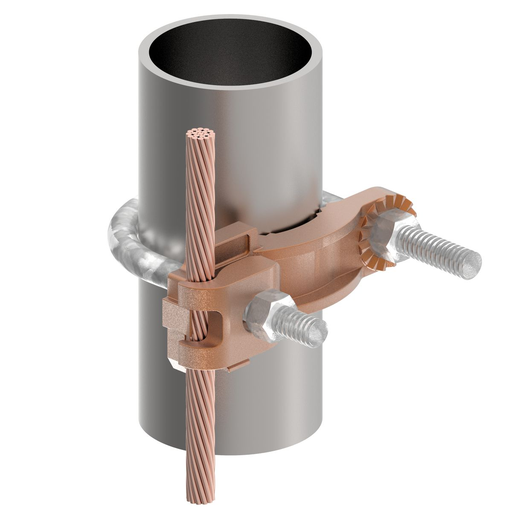

Burndy GAR3904 Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 2-1/2" - 3-1/2" Pipe , 3/8" Stud

Manufacturer: Hubbell-Burndy | Catalog # GAR3904 | Codale Part # 452954
$149.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 2-1/2" - 3-1/2" Pipe , 3/8" Stud.

Technical Information

Applications
For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables
Bolt Size
3/8-16
Material
Copper
Plated?
No
Plating Type
Unplated
Type
GAR3902

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810234037
Finish
Galvanized
Product UPC
78181023403
Weight
1.0500 lb

Dimensions

Height
6-1/2 Inch
Length
1-3/4 Inch
Overall Length
1.75 in
Width
1.75 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • Cable clamp swivels at 90°, permits parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
  • One-wrench installation for simplified installation
  • Rated for Direct Burial in earth or concrete
  • UL467 Listed for the US and Canadian Markets
  • Provides quality assurance to recognized industry NEC standards from an independent part
