Erico 200 Cadweld Welding Material, F20, 200

Manufacturer: Cadweld | Catalog # 200 | Codale Part # 452983
$67.34/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet Product Catalog Page MSDS / SDS Safety Sheet MDM Safety Data Sheet

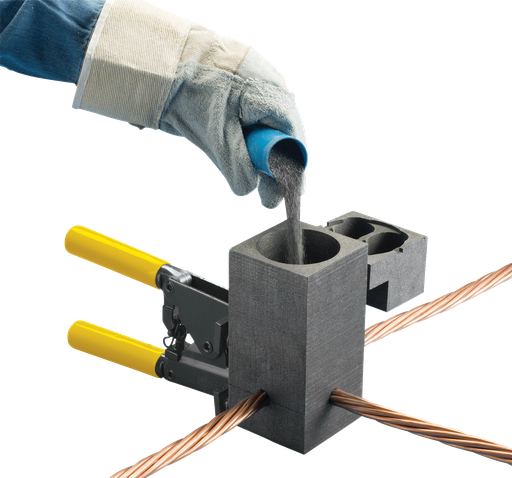

Cadweld F20 welding material is primarily used for grounding and bonding applications. Packaged in a blue tube, it is poured into the mold and ignited with a flint ignitor. Contains approx 200 grams of weld metal and small quantity of starting material.

Technical Information

Applications
Use in Grounding and Bonding Applications
Material
Copper
Size
200 g
Type
F20, Non-Explosive, Traditional

Packaging

Standard Packaging Qty
10 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
Cadweld®

General Product Info

12-Digit UPC
782856001317
Color
Gray Black
Product UPC
78285600131
Weight
0.24 kg

Certifications and Compliance

Certifications
CULus

Certifications & Compliance

Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features
  • Mixture consists mainly of copper oxide and aluminum
  • Primarily used in grounding and bonding applications
  • Welding material is in the top of the tube and starting material is in the bottom of the tube
  • Packaged by size in plastic tubes with clear caps
  • Tubes packaged in plastic boxes along with metal disks
  • Each welded connection uses a single disk
  • Non-explosive
  • Not subject to spontaneous ignition
  • See specific nVent ERICO Cadweld connection details to determine welding material requirements
Certifications
  • UL ANSI/UL 467
  • cUL CSA C22.2 No. 41
  • DoC, ERICO Cadweld EN IEC 62561-1:2017
