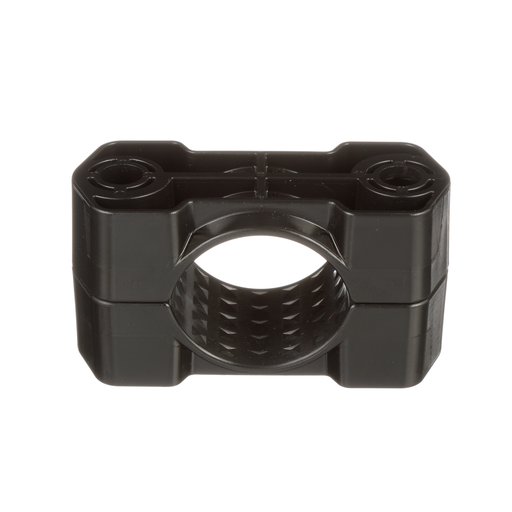

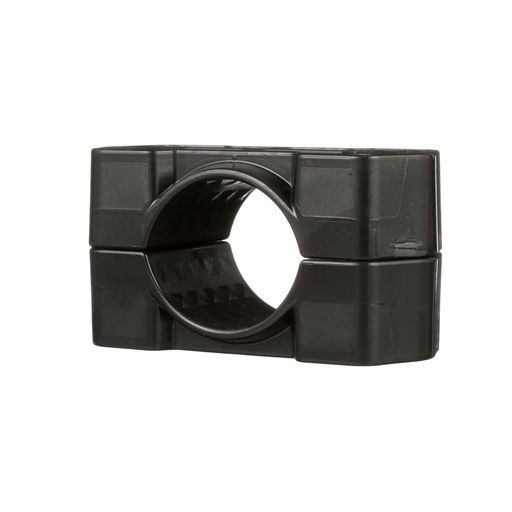

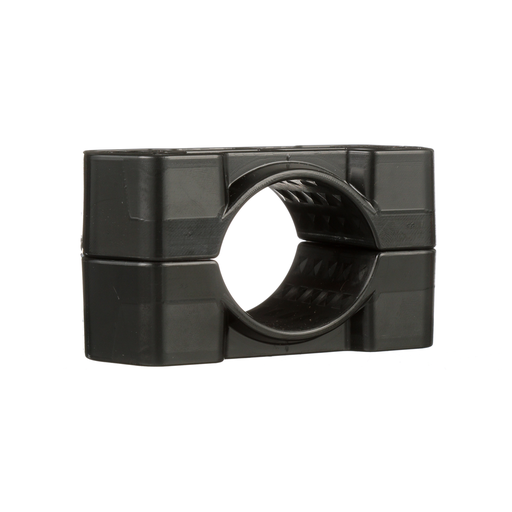

Panduit CCPL2H4658-X Cable Cleat, 2H Clamp Type, PL, Single Cable, 1.81-2.28in OD, PK10

Manufacturer: PANDUIT | Catalog # CCPL2H4658-X | Codale Part # 4531451
$7,039.73/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The CCPL2H4658-X Polymer Two-Hole Cable Cleat is ideal for lower to medium short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914:2015, tested up to 85.4kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 46-58mm and installs direct to the cable tray rung via fixing holes and two user-supplied M10 bolts. Features glass filled nylon material and rounded edges for cable insulation protection.

Technical Information

Material
Nylon
Max Operating Temperature
140 degrees F
Min Operating Temperature
-40 degrees C
Type
Polymer Cable Cleat

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NA

General Product Info

12-Digit UPC
613056733039
Color
Black
Environment
Indoor,Outdoor
Environmental Conditions
Indoor and Outdoor
Product UPC
61305673303

Dimensions

Width
NA IN

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: IEC 61914:2015
