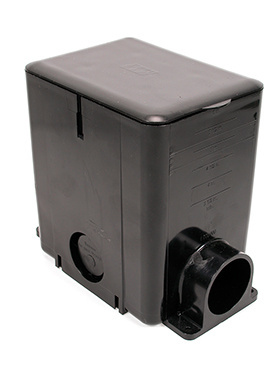

Product image for Wiremold 880MP 5-1/2 x 4-1/8 x 6" 100 In? 1-Gang Non-Metallic Rectangular Floor Box
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Wiremold 880MP 5-1/2 x 4-1/8 x 6" 100 In? 1-Gang Non-Metallic Rectangular Floor Box

Manufacturer: Legrand Wiremold | Catalog # 880MP | Codale Part # 453445
$41.69/ea
ea
Log in or register to view your price, purchase history, and more!
202 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The Modulink™ nonmetallic floor box provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.

Technical Information

Applications
Commercial, Office
Cable Entry
Conduit Opening
Material
Plastic
Material Type
Non-Metallic
Mounting Type
In Concrete
Number of Gangs
1 Gang
Number of Outlets
0
Size
6"x4 1/8"x5 1/2"
Type
Rectangular

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564524304
Color
Black
Construction
Not Assembled
Product Series
Modulink 880MP
Product UPC
78656452430
Weight
2.27 lb

Dimensions

Depth
152 mm
Height
6-1/4 Inch
Length
6 Inch
Width
105 mm

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Features
  • TopGuard protection. Activation covers for the 880MP PVC box are TopGuard protected. These cover assemblies keep out water, dirt, and debris from the power and communication compartments.
  • Multiple service capability. Eliminates the cost of a separate floor box and cover to accommodate communication service.
  • Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.
  • 1 1/4'' [32mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
  • Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.
  • Conduit reducers and plugs provided. Allows direct reduction from 1 1/4'' [32mm] conduit to 1'' [25mm], 3/4'' [19.1mm] or 1/2'' [12.7mm] conduit.
  • Cubic inch markings on the interior of the box. No need to calculate cubic inch capacity for wire fill, saving installation time.
  • Ratchet adjusting ring has built-in fiber storage. Provides bend radius control for fiber optic cables.
  • Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
  • Modular design and gangability. One SKU to order boxes with the ability to configure boxes as needed on the job site.
  • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
  • Internal spacer. Protects box from deformation of the sidewalls when high temperature additives are used in the concrete pour.
  • Redesigned mudcap. High impact mudcap protects the box from damage when heavy equipment such as scissor lift trucks come in contact with the box during installation.
  • Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
  • A wide selection of data and bezel options available for use with Ortronics ® TracJack ™ and Series II devices.
Certifications
  • cULus Listed
  • RoHS Compliant
