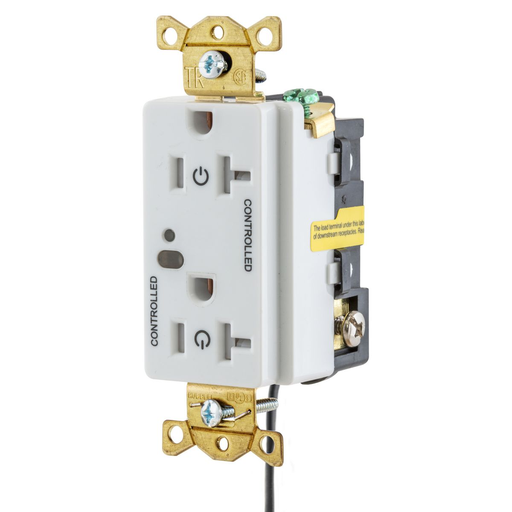

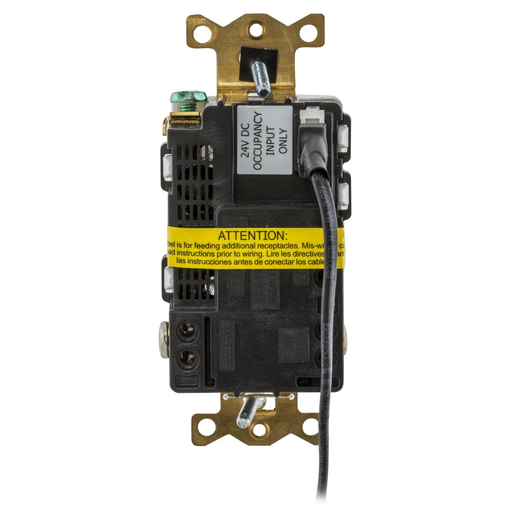

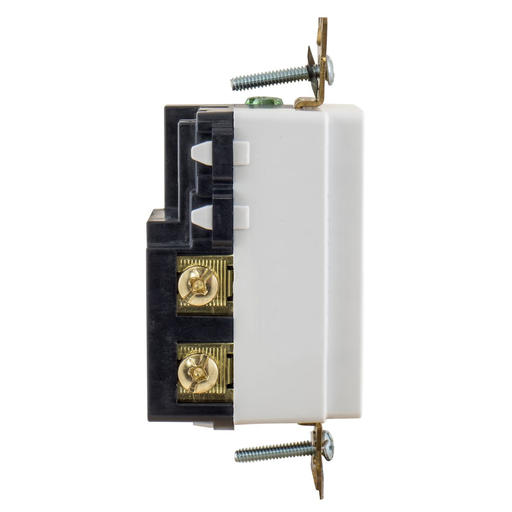

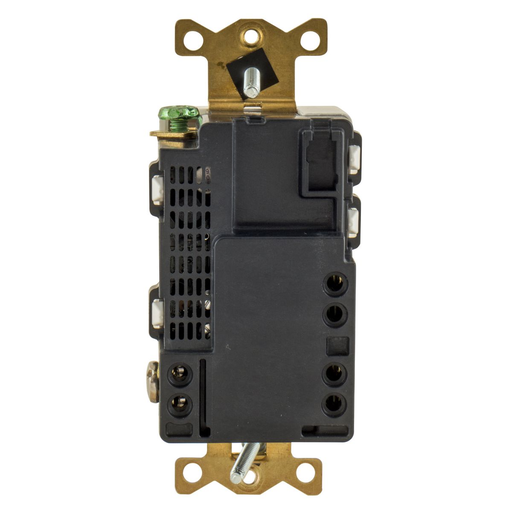

Hubbell HBL5362LC2W LOAD CTRL DR, FULL CTRLD, 20A, 5-20R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5362LC2W | Codale Part # 4534546
$166.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices,Wire Switched ,Logic Load Control Receptacles,Fully Controlled, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond

Technical Information

Amperage
20 Amp
Applications
Logic Load Control Receptacles
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
104 degrees F
Size
Standard Product
Style
Wired
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2506 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Duplex

General Product Info

12-Digit UPC
783585427775
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Switched Receptacles
Product UPC
78358542777
Weight
0.4 lb

Dimensions

Height
1.9 Inch
Length
4-3/4 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Designed for Automatic Receptacle (plug load) Control
  • Half controlled face and downstream control
  • Low voltage wire control
  • Tamper Resistant NOT Plug Resistant®
