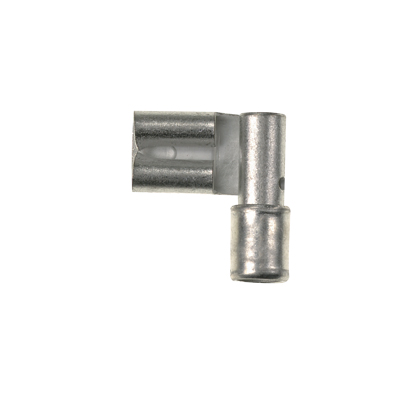

Panduit DR14-250-M Disconnect, 90?, Bare, 14-16 AWG, 0.25" Tab, PK1000

Manufacturer: PANDUIT | Catalog # DR14-250-M | Codale Part # 4535146
$778.79/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
150 degrees C
Tc Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827596
Finish
Tinned
Product UPC
07498382759
UNSPSC
39121409

Dimensions

Depth
0.55 Inch
Height
0.61 Inch
Overall Length
0.57 in
Width
0.3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
