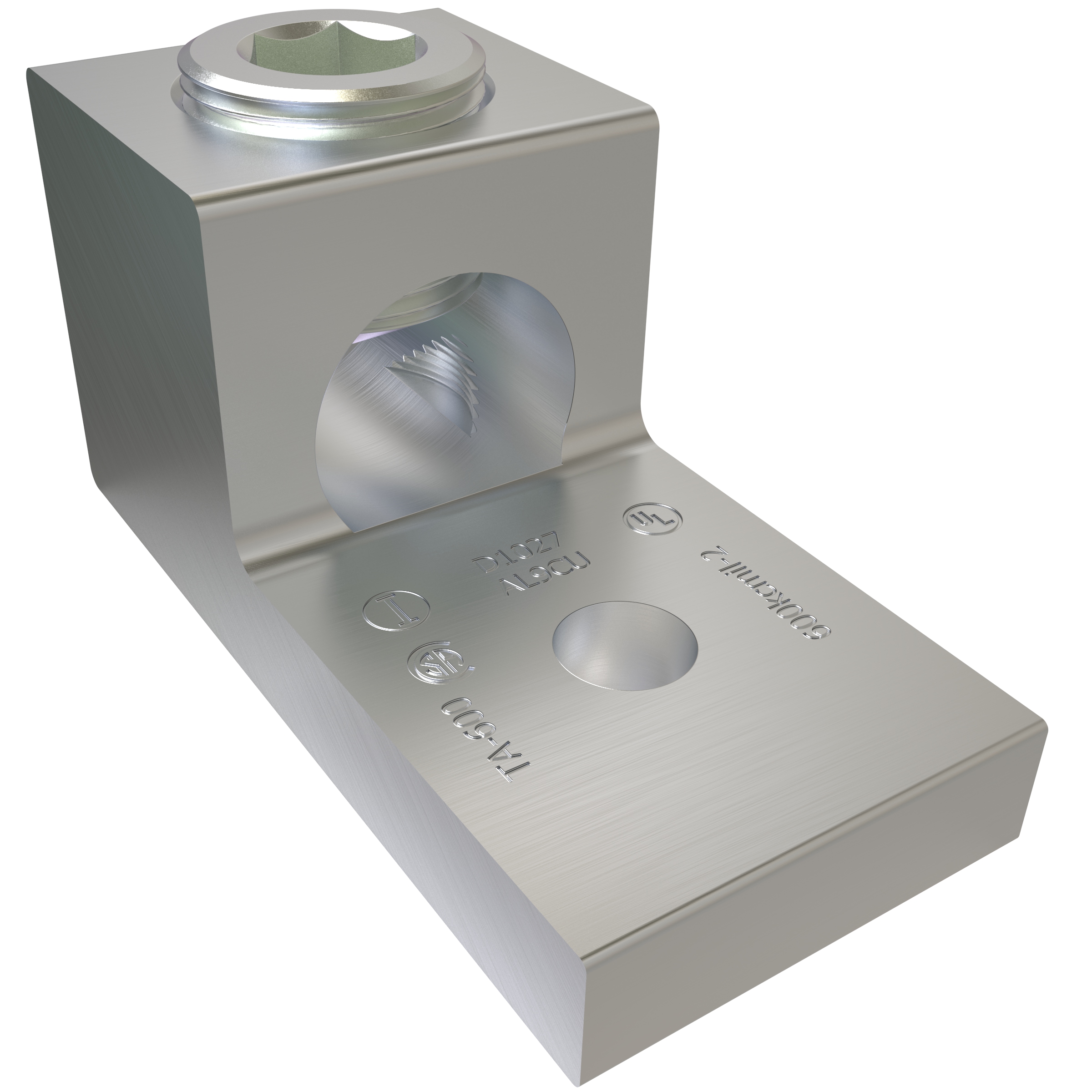

Product image for Ilsco TA-600 Aluminum Mechanical Lug, Conductor Range 600-2, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco TA-600 Aluminum Mechanical Lug, Conductor Range 600-2, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-600 | Codale Part # 453553
$22.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 1 conductors, 1 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Terminating Connector
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminum
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
13/32 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA File Number: LR-29601,UL Specifications: UL 486A-B,UL File Number: E6207
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Packaging

Pkg Qty
12

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669892161
Color
Silver
Finish
Tin Plated
Product UPC
78366989216
Weight
0.35 lb

Dimensions

Height
1.562 Inch
Length
3.187 Inch
Width
1.5 in
