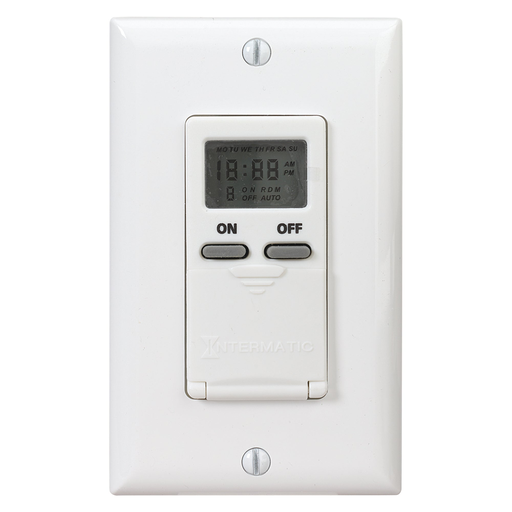

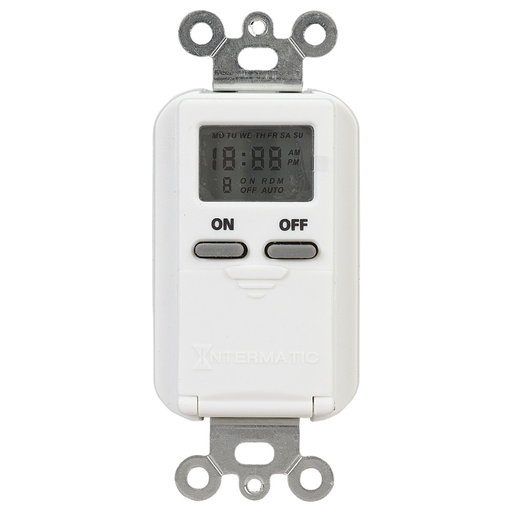

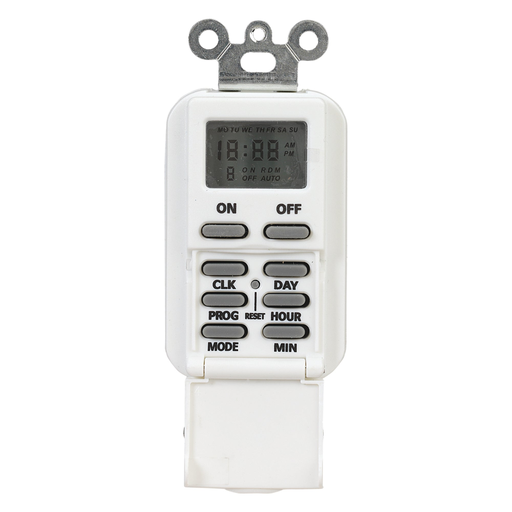

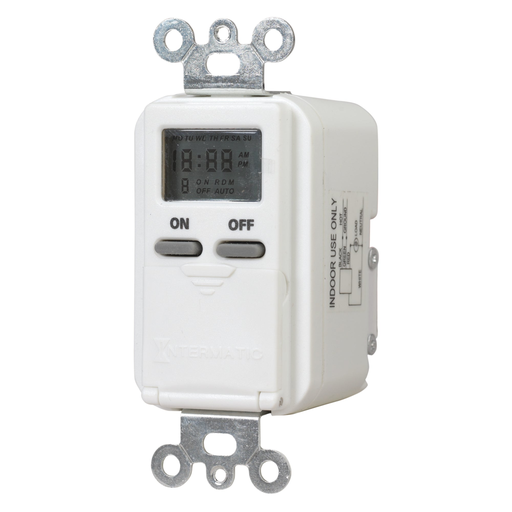

Intermatic EI500WC 7-Day 120 VAC 60 Hz 15 Amp White Programmable Timer

Manufacturer: Intermatic | Catalog # EI500WC | Codale Part # 4535565
$87.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Outdoor Lighting Control
Contact Configuration
1 NO
Contact Rating
15 AMP @ 120 VAC (Resistive Heater), 8.3 AMP @ 120 VAC (Tungsten Incandescent), 8 AMP @ 120 VAC (Ballast Magnetic)
Frequency
60 Hz
Input Voltage
125 V
Material
Thermoplastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Standard
CULus Listed,HVACR
Temperature Rating
0 - 50 degrees C
Type
Decorator Digital In-Wall
Voltage
120 Volt
Wattage
1875 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275105232
Color
White
Product UPC
07827510523
Weight
0.472 lb

Dimensions

Depth
1.438 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • 7-day programmable schedules with 14 ON/OFF events
  • Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance
  • Single-pole circuit
  • Incandescent/fluorescent/CFL/LED compatible
  • Built-in rechargeable, non-serviceable battery backup
  • Requires neutral connection
  • Backlit LCD display
  • Decorator switch plate not included
  • NA
