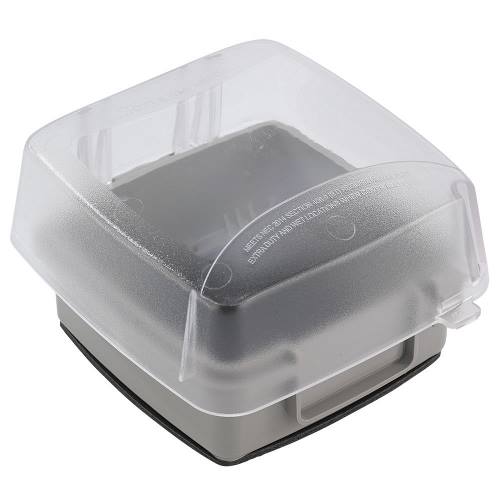

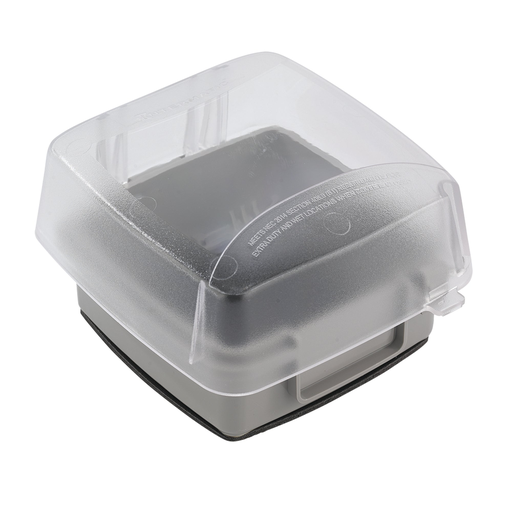

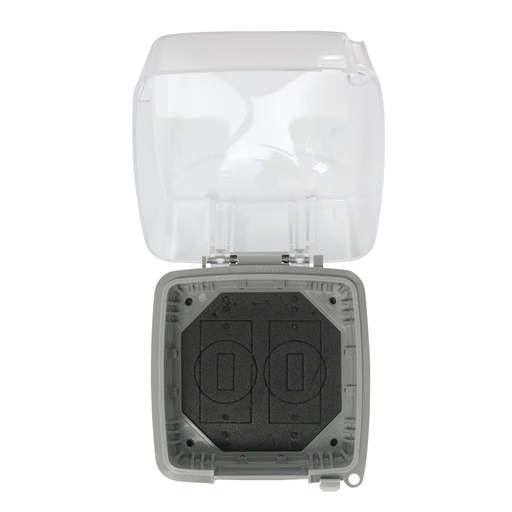

Intermatic WP5240C 2-Gang Vertical Hinge 3-5/8 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert

Manufacturer: Intermatic | Catalog # WP5240C | Codale Part # 4535855
$38.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Receptacle Protection
Cable Size
(2) 12 Gauge, (1) 10 Gauge
Gang Type
Double
Insulation Material
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical
Number of Gangs
2 Gang
Number of Outlets
2
Size
3.625 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 92.07 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM
Standard
2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275145375
Color
Clear,Gray
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Product UPC
07827514537
Shape
Rectangle

Dimensions

Depth
3-5/8 Inch
Height
6 Inch
Warranty Length
1 yr
Width
6.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia. shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited
