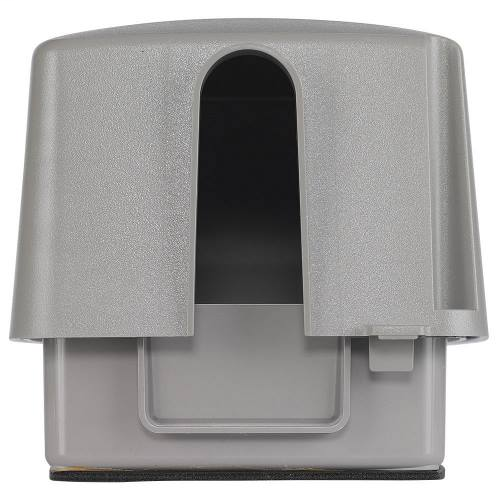

ENTERMATIC WP5500G W/P CVR, DBL, 30/50 AMP GREY

Manufacturer: Intermatic | Catalog # WP5500G | Codale Part # 4535856
$40.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Wet Location and Heavy Duty Application
Cable Size
(1) 6 Gauge (3 Wire Ground)
Gang Type
Double
Insulation Material
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical
Number of Module Inserts
6
Number of Outlets
2
Size
4.75 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 120.65 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM
Standard
2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275145405
Color
Gray
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Product UPC
07827514540
Shape
Rectangle

Dimensions

Depth
121 mm
Height
154 mm
Warranty Length
1 yr
Width
168.3 mm
Features
  • Complies with 2014 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #12 AWG or (1) #10 AWG
  • 30/50 A (1) #6 AWG
Applications
  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields
