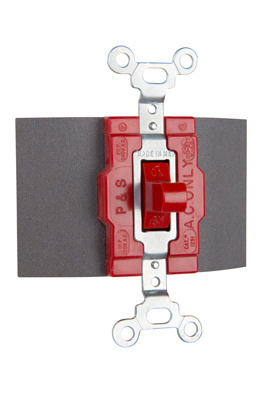

Pass & Seymour 1251-RED Manual Control Switch, Single Pole / Double Throw, 20A 120/277V, Momentary Contact - Red

Manufacturer: Legrand Pass & Seymour | Catalog # 1251RED | Codale Part # 4535868
$73.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Pole, Double Throw Manual Control Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Actuator
Toggle Switch
Amperage
20 Amp
Applications
Commercial/Industrial
Connection Type
Side Wire
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuos +75degrees C, minimum -40degrees C
Size
1.469" Depth x 1.5" Width x 3.281" Height
Tc Connection
Side Wire
Type
Manual Controller
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007026283
Color
Red
Finish
Matte
Product UPC
78500702628

Dimensions

Depth
1.469 Inch
Height
3.281 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • UL Listed
  • CSA Listed
  • cULus Listed
Features
  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
