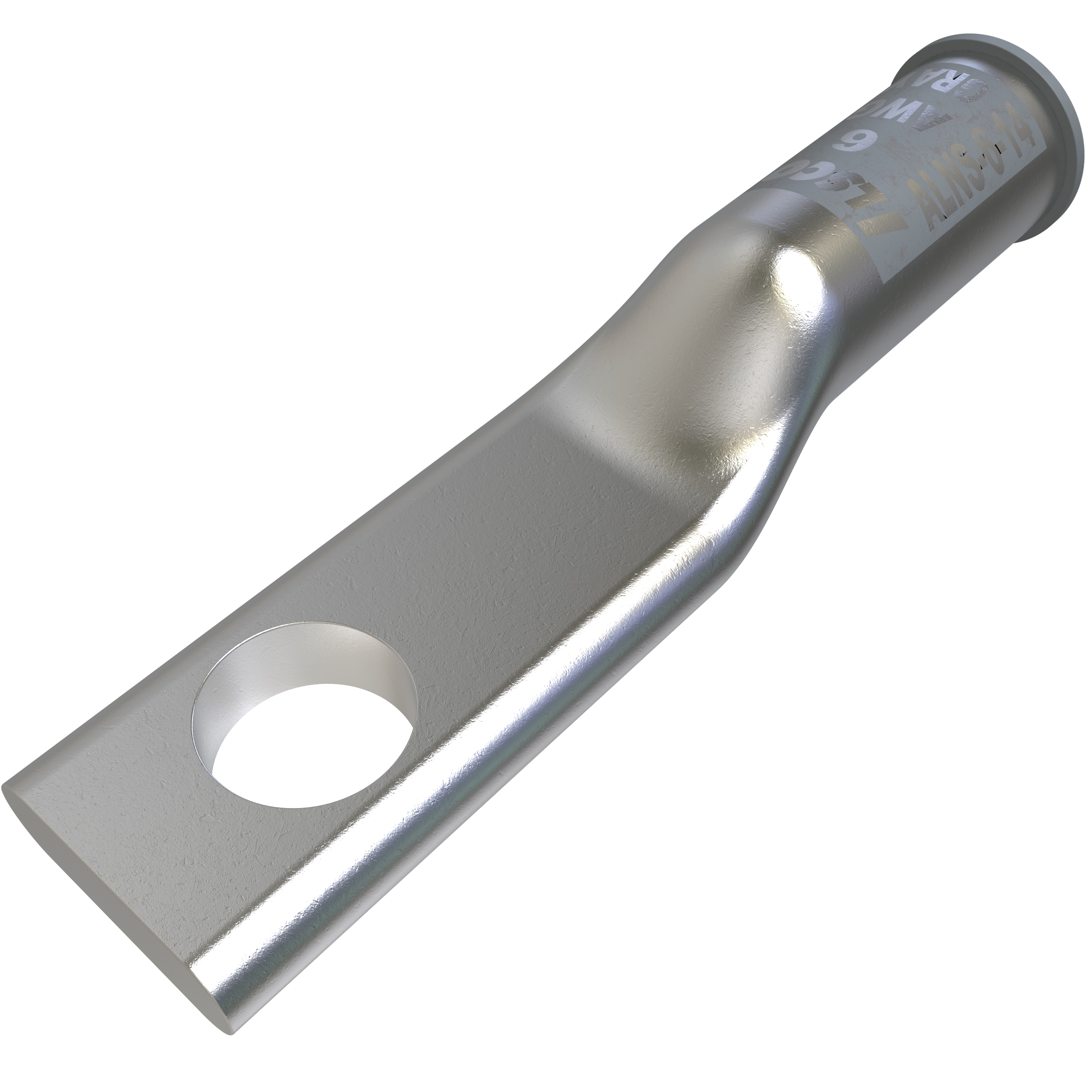

Product image for Ilsco ALNS-6-14 SureCrimp® Aluminum Compression Lug, Conductor Size 6, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ALNS-6-14 SureCrimp® Aluminum Compression Lug, Conductor Size 6, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-6-14 | Codale Part # 4535892
$8.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 6 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Gray, primary color Silver, die index 346,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
0.602 in
Barrel Type
Long
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.281 in
Number of Holes
1 Hole
Size
L:1.86;W:0.449;H:0.368 IN
Standard
CSA,E2186,UL
Strip Length
16.878 mm
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669690446
Color
Silver
Product UPC
78366969044
Weight
0.009 lb

Dimensions

Height
0.368 Inch
Inside Diameter
0.194 in
Length
1.86 Inch
Outside Diameter
0.338 in
Width
0.449 in
