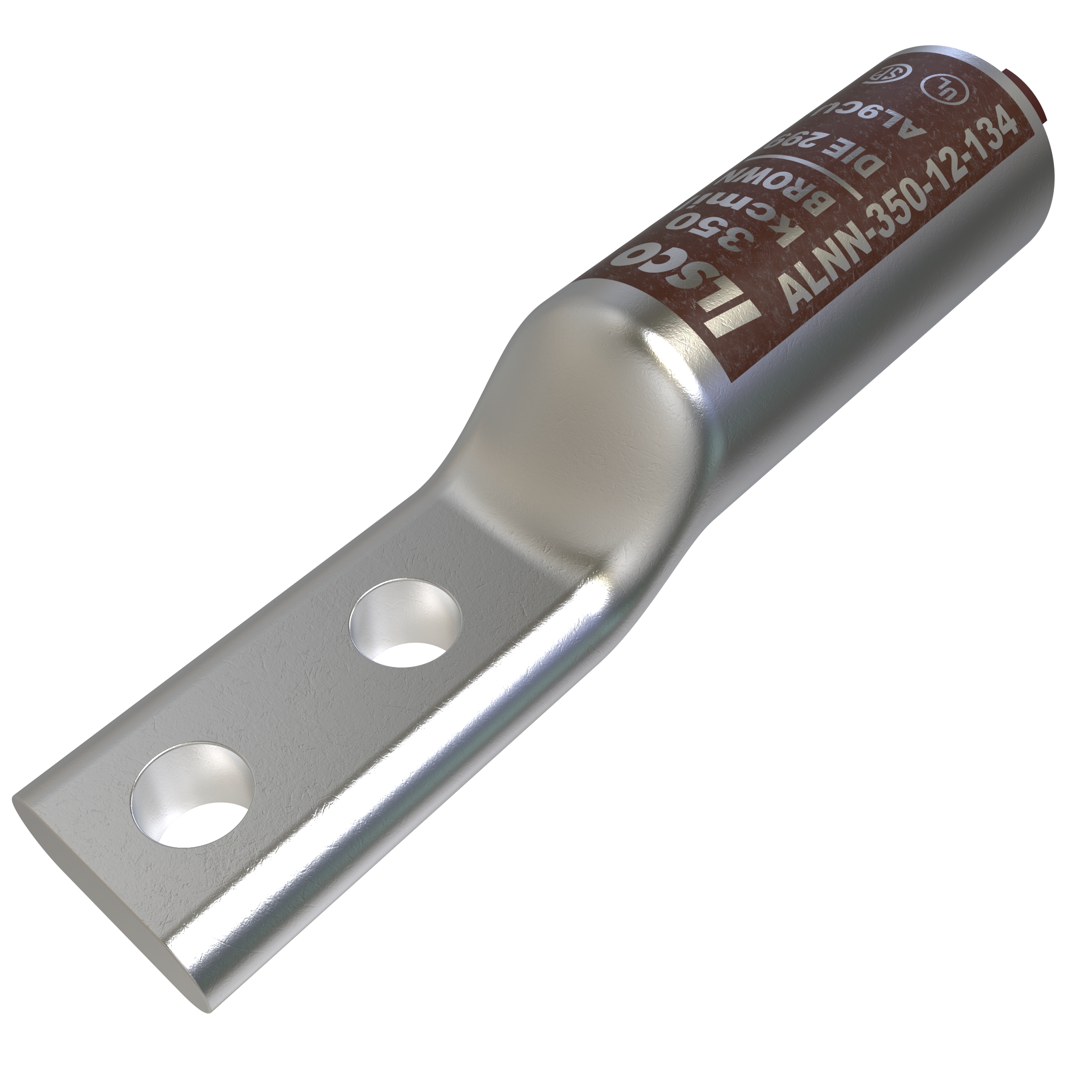

ILSCO ALNN-350-12-134 AL COMP NARRO

Manufacturer: Ilsco | Catalog # ALNN-350-12-134 | Codale Part # 4535897
$125.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 350 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index 299,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.353 in
Barrel Type
Long
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:6.06;W:1.075;H:1.145 IN
Strip Length
61.353 mm
Temperature Rating
90 degrees C
Type
ALNN:LONG NARROW TANG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669691429
Color
Silver
Product UPC
78366969142
Weight
0.226 lb

Dimensions

Height
1.145 Inch
Inside Diameter
0.72 in
Length
6.06 Inch
Outside Diameter
1.105 in
Width
1.075 in
