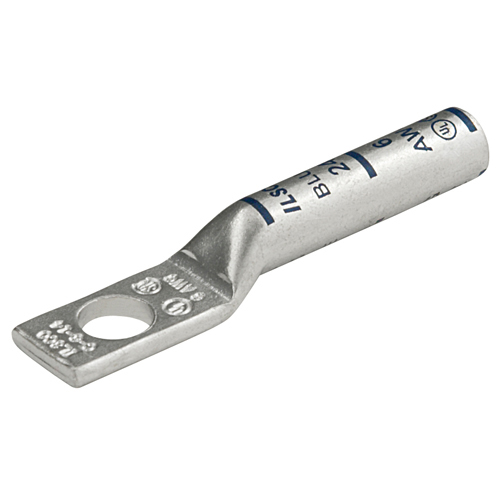

Product image for Ilsco CLNS-6-14 SureCrimp® Copper Compression Lug, Conductor Size 6, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CLNS-6-14 SureCrimp® Copper Compression Lug, Conductor Size 6, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLNS-6-14 | Codale Part # 4535968
$4.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 6 Sol, 6 Str, Contains DE-OX®, no sight window, Square tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Terminating Connector
Barrel Length
1.125 in
Barrel Type
Straight, Long Chamfered Entry
Bolt Size
1/4 IN
Color Coding
Blue
Conductor Material
Copper
Conductor Size
6 AWG
Conductor Type
Flex,Solid,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.281 in
Number of Holes
1 Hole
Size
L:2;W:0.44;H:0.343 IN
Standard
CSA,E2186,UL
Strip Length
30.149 mm
Stud Size
1/4 in
Temperature Rating
90 degrees C
Type
CLNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669628944
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366962894
Weight
0.021 lb

Dimensions

Height
0.343 Inch
Inside Diameter
0.225 in
Length
2 Inch
Outside Diameter
0.313 in
Overall Length
2 in
Width
0.44 in
