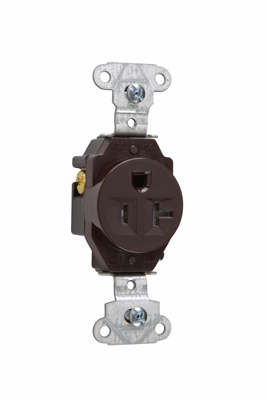

Product image for Pass & Seymour TR5351 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Brown Nylon Face Tamper-Resistant Single Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour TR5351 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Brown Nylon Face Tamper-Resistant Single Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # TR5351 | Codale Part # 4535986
$29.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 20amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Construction
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.296 L x 1.190 W x 3.28 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241921
Color
Brown
Product UPC
78500724192
UNSPSC
39121406

Dimensions

Depth
1.19 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • AC receptacles available in 15 and 20A, 125V.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
